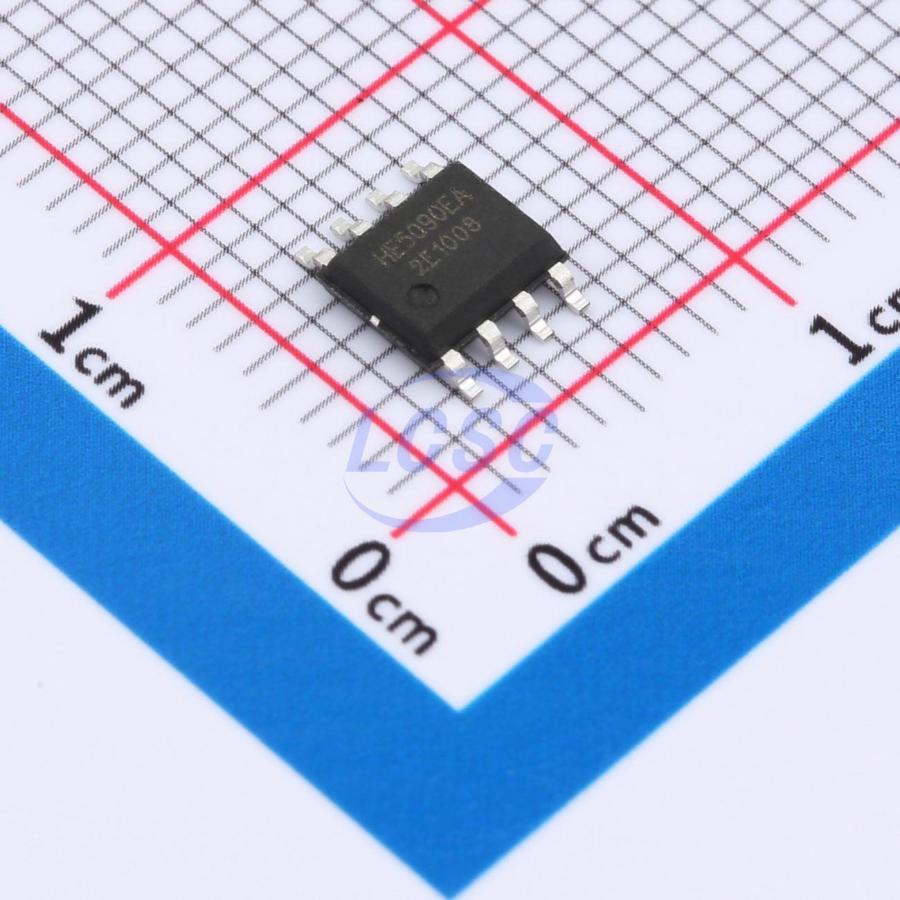

HE5090EA
Battery Charging IC Lithium Battery ESOP-8
Dual-cell lithium battery series boost charging management
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE5090EA
- Store part #
- C42377823
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,855 in stock
#C42377823
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.80 | ₹229.00 |
| 50+ | ₹35.96 | ₹1,798.00 |
| 150+ | ₹31.75 | ₹4,762.50 |
| 500+ | ₹26.49 | ₹13,245.00 |
| 2,500+ | ₹24.14 | ₹60,350.00 |
| 4,000+ | ₹22.74 | ₹90,960.00 |
5 × ₹45.80
₹229.00
excl. GST
₹270.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HE5090EA
₹229.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1mA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V~6V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
HE5090EA is a boost charging management IC for dual-cell series lithium battery or Li-ion battery charging from a 5V USB input. It integrates NTC functionality with a maximum charging current of 1.5A. With an integrated power MOSFET and asynchronous switching architecture, the device requires minimal external components, effectively reducing overall solution size and BOM cost. The boost switching charger operates at 500KHz with 90% conversion efficiency. The internally integrated high-voltage transistor improves reliability under various complex application conditions. With a 5V input voltage, the built-in adaptive loop intelligently adjusts charging current to prevent adapter output overload, ensuring compatibility with all adapters.
Applications
- Dual-cell lithium battery charge control
- POS terminals
- Electric fans
- Standalone chargers
- Walkie-talkies
Key features
- USB 5V input asynchronous switching boost charging, integrated 30V OVP
- Input voltage range: 3.6V ~ 6.0V, BAT pin withstand voltage 30V
- Operating frequency: 500KHz
- Max 1.5A charging current, externally adjustable via resistor
- Boost charging efficiency: 90%
- Input OVP, battery short-circuit and OVP, IC over-temperature protection
- Charge status and charge termination status indication
- Automatic input current regulation, compatible with all adapters
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HE3342EAP8#C5123429HEERMICR · ESOP-8 | HEERMICR | ESOP-8 | 1,310 | ₹38.47 · 1,310 in stock | View |
