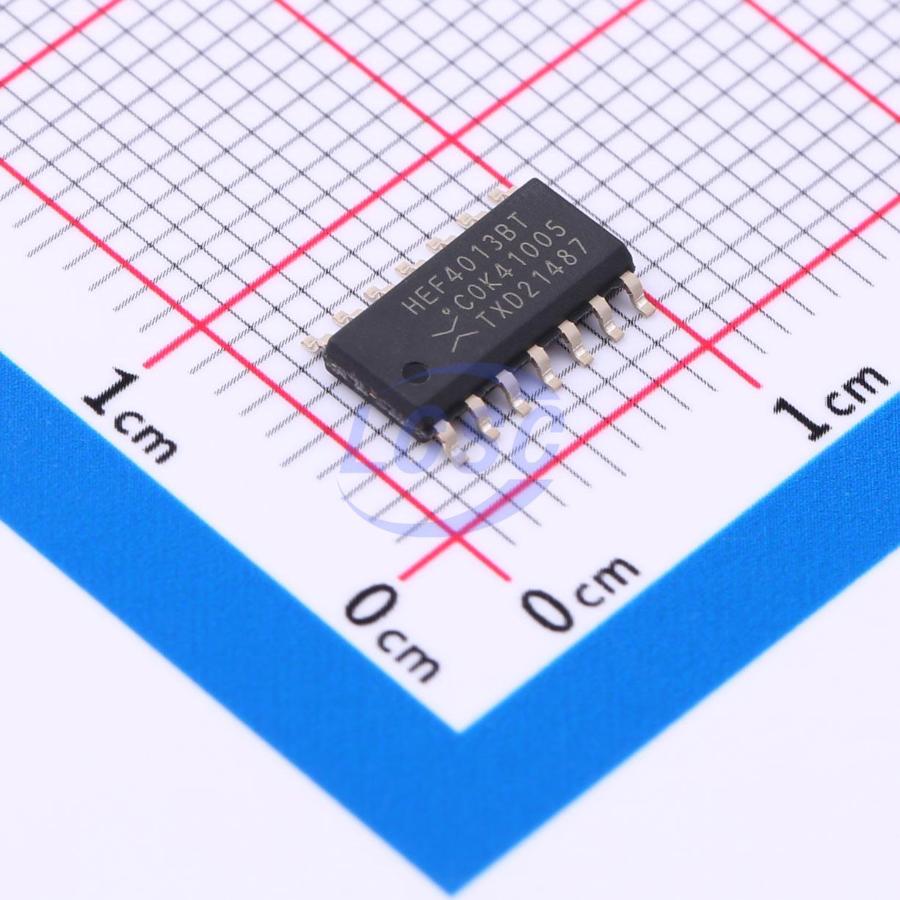

HEF4013BT-Q100J
3V~15V 1 2 60ns@15V,50pF SO-14 Flip Flops RoHS
Dual D-type flip-flop
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4013BT-Q100J
- Store part #
- C545765
- Package / case
- SO-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,610 in stock
#C545765
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.52 | ₹202.60 |
| 50+ | ₹31.77 | ₹1,588.50 |
| 150+ | ₹28.01 | ₹4,201.50 |
| 500+ | ₹23.32 | ₹11,660.00 |
| 2,500+ | ₹21.25 | ₹53,125.00 |
| 5,000+ | ₹19.99 | ₹99,950.00 |
5 × ₹40.52
₹202.60
excl. GST
₹239.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4013BT-Q100J
₹202.60 for 5 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 4000B Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 3.4mA
- Current - Output Low(IOL)
- 3.4mA
- Setup Time
- 5ns
- Quiescent Current
- 4uA
- Hold Time
- 0ns
- Propagation Delay
- 60ns@15V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
The HEF4013B-Q100 is a dual D-type flip-flop with set and reset; positive-edge trigger. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD. Schmitt-trigger action on the clock input makes the circuit highly tolerant of slower clock rise and fall times. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Applications
- Counters and dividers
- Registers
- Toggle flip-flops
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from -40°C to +85°C and from -40°C to +125°C
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Tolerant of slow clock rise and fall times
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection: MIL-STD-883, method 3015 exceeds 2000 V HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
- Complies with JEDEC standard JESD 13-B
