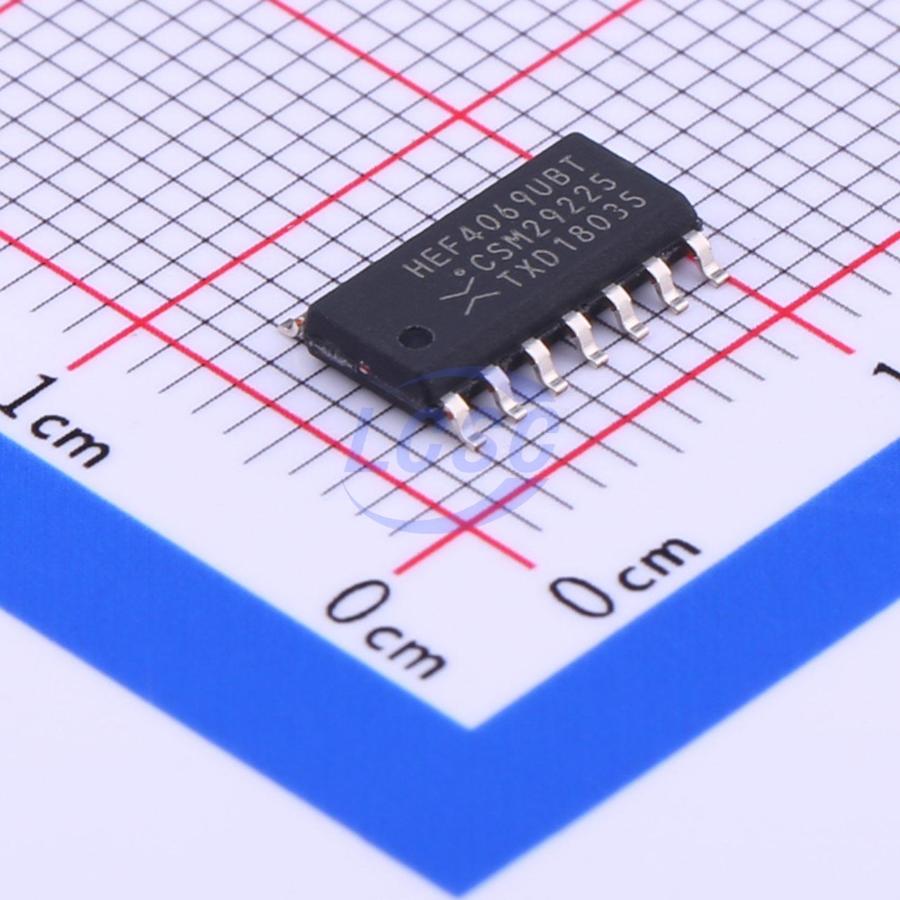

NexperiaDatasheet (PDF)
HEF4069UBT,653
StandardCMOS 3V~15V 30ns@15V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex unbuffered inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4069UBT,653
- Store part #
- C6739
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C6739
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.88 | ₹154.40 |
| 50+ | ₹22.53 | ₹1,126.50 |
| 150+ | ₹18.96 | ₹2,844.00 |
| 500+ | ₹14.49 | ₹7,245.00 |
| 2,500+ | ₹12.50 | ₹31,250.00 |
| 5,000+ | ₹11.30 | ₹56,500.00 |
5 × ₹30.88
₹154.40
excl. GST
₹182.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4069UBT,653
₹154.40 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 4000B
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 30ns@15V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The HEF4069UB is a hex unbuffered inverter. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Applications
- Oscillator
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13 - B
- ESD protection: HBM JESD22 - A114F exceeds 2000 V MM JESD22 - A115 - B exceeds 200 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
