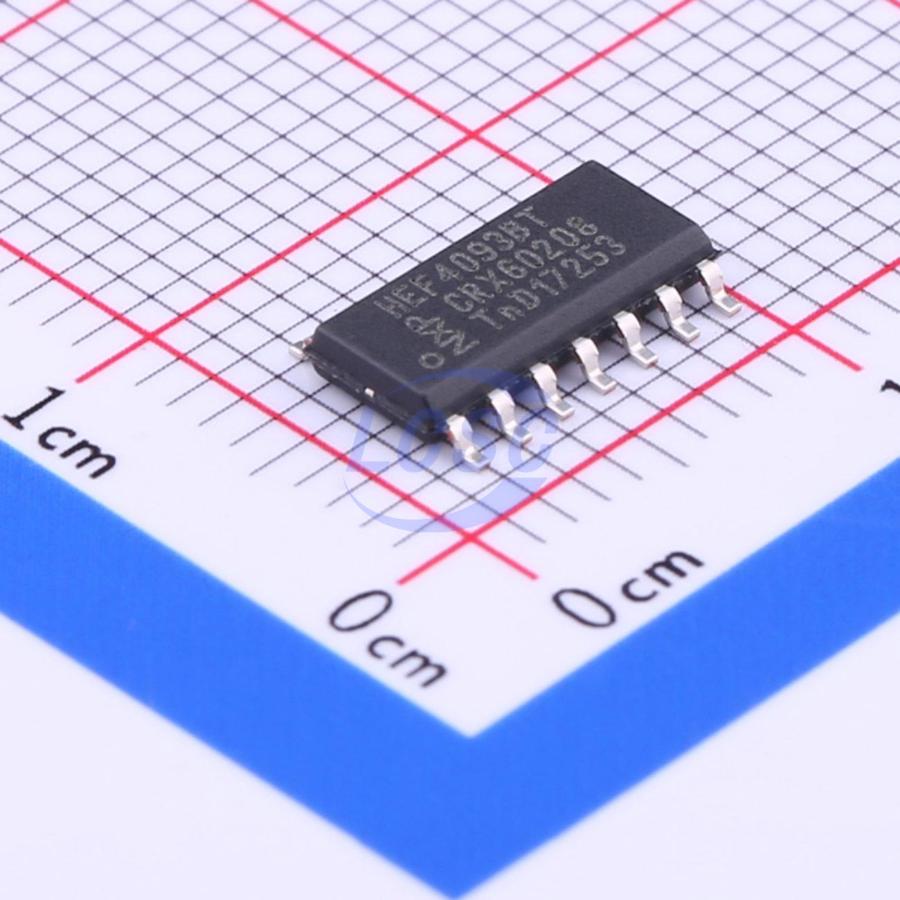

HEF4093BT,653
Schmitt trigger 3V~15V 60ns@15V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input NAND Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4093BT,653
- Store part #
- C7867
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,37,065 in stock
#C7867
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.73 | ₹163.65 |
| 50+ | ₹25.56 | ₹1,278.00 |
| 150+ | ₹22.49 | ₹3,373.50 |
| 500+ | ₹18.67 | ₹9,335.00 |
| 2,500+ | ₹16.95 | ₹42,375.00 |
| 5,000+ | ₹15.93 | ₹79,650.00 |
5 × ₹32.73
₹163.65
excl. GST
₹193.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4093BT,653
₹163.65 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@15V,50pF
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
The HEF4093B is a quad two-input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive-going and negative-going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). It operates over a recommended VDD power supply range of 2V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Schmitt trigger input discrimination
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
- Complies with JEDEC standard JESD 13-B
