HGSEMIDatasheet (PDF)

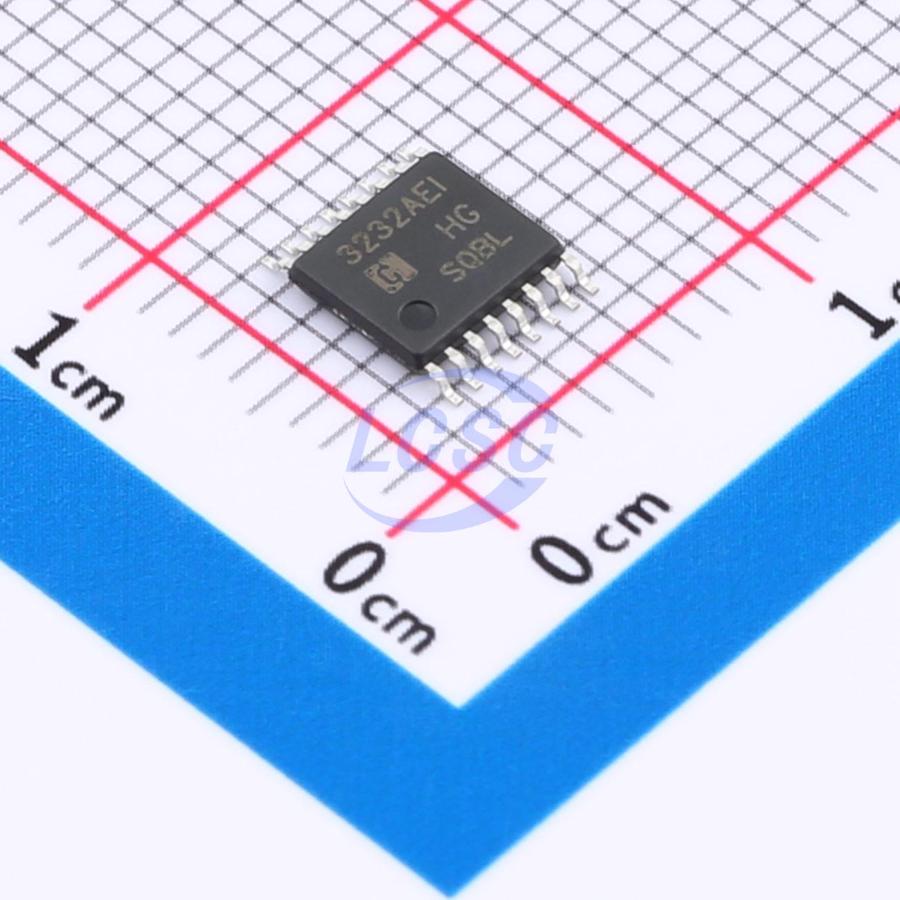

HG3232AEIMT/TR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers
TSSOP-16RoHSActive
±15kVESD Protection, 3V to 5.5V Multi-Channel RS-232 Line Driver and Receiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG3232AEIMT/TR
- Store part #
- C7432150
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,613 in stock
#C7432150
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.32 | ₹37.32 |
| 10+ | ₹32.33 | ₹323.30 |
| 30+ | ₹30.16 | ₹904.80 |
| 100+ | ₹27.35 | ₹2,735.00 |
| 500+ | ₹26.26 | ₹13,130.00 |
| 1,000+ | ₹25.60 | ₹25,600.00 |
1 × ₹37.32
₹37.32
excl. GST
₹44.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HG3232AEIMT/TR
₹37.32 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Features
- Short-Circuit Protection
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The HG3232A interface IC integrates two drivers, two receivers, and a dual charge pump circuit. The serial port features ±15kV IEC61000-4-2 ESD protection. The HG3232A complies with TIA/EIA-232-F requirements, providing electrical interface functionality between asynchronous communication controllers and serial port connectors. An on-chip charge pump and four external small capacitors support single-supply operation from 3V to 5.5V. The HG3232A supports data signaling rates up to 250kbit/s, with a driver output slew rate of up to 30V/µs. The output ports feature short-to-ground protection.
Applications
- Industrial PC
- Wired networking
- Data center and enterprise computing
- Battery-powered systems
- Laptops
- Handheld devices
Key features
- VCC supply voltage: 3V to 5.5V
- Data rate up to 250kbit/s
- Dual drivers and dual receivers
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports external capacitors as small as 0.1µF
- Enhanced ESD protection on serial pins — HBM: ±15kV; IEC 61000-4-2: Contact Discharge ±10kV; Air Discharge ±15kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EIMT/TR#C5310890HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 370 | ₹73.98 · 370 in stock | View |
 | HGX3232EIMT/TR#C5310892HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 2,484 | ₹77.58 · 2,484 in stock | View |
| SP3232AEIMT/TR#C7432156HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 50 | ₹34.07 · 50 in stock | View | |
 | HGX3232AEIMT/TR#C7432144HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 460 | ₹55.84 · 460 in stock | View |
 | MAX3232AEIMT/TR#C7432162HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,820 | ₹37.39 · 1,820 in stock | View |
