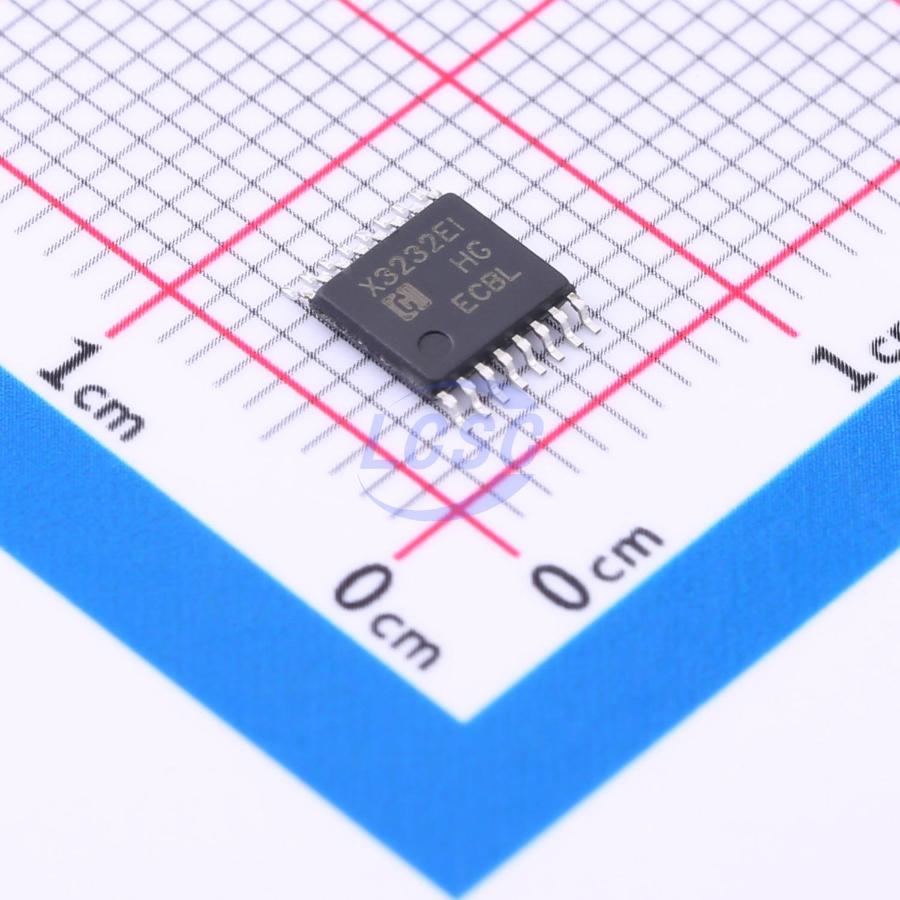

HGX3232EIMT/TR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers
TSSOP-16RoHSActive
HGX32xxE/HGX1385E RS232 Transceiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGX3232EIMT/TR
- Store part #
- C5310892
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,484 in stock
#C5310892
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.58 | ₹77.58 |
| 10+ | ₹61.28 | ₹612.80 |
| 30+ | ₹54.34 | ₹1,630.20 |
| 100+ | ₹45.64 | ₹4,564.00 |
| 500+ | ₹39.99 | ₹19,995.00 |
| 1,000+ | ₹37.60 | ₹37,600.00 |
1 × ₹77.58
₹77.58
excl. GST
₹91.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGX3232EIMT/TR
₹77.58 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Overview
The HGX32xxE series are interface ICs powered by 3V supply, meeting EIA/TIA-232 and CCITT V.28/V.24 communication requirements with low power consumption. Each device integrates two drivers, two receivers, and a dedicated switched-capacitor voltage converter. The HGX3220 features one driver and one receiver. These devices operate from a 3V to 5.5V supply with a guaranteed data rate of 250kbit/s. ESD protection on all RS-232 I/O pins exceeds ±15kV air discharge and ±8kV contact discharge per EN61000-4-2.
Applications
- Battery-powered and handheld devices
- Laptops and PDAs
- Cellular phone data cables
- Terminal adapters and POS terminals
- Modems
Key features
- HGX32xxE meets EIA/TIA-232 and CCITT V.28/V.24 communication requirements at 3.3V or 5V supply
- Low quiescent current: 0.5mA typical, 1mA maximum
- Low shutdown current: 1uA typical, 10uA maximum
- Guaranteed 250kbps data rate
- Dedicated switched-capacitor voltage converter
- Dedicated XPWRSAVE automatic standby power saving
- ESD protection on RS-232 I/O: ±15kV Human Body Model (HBM), ±15kV EN61000-4-2 Air Gap Discharge, ±8kV EN61000-4-2 Contact Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EIMT/TR#C5310890HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 370 | ₹73.98 · 370 in stock | View |
 | HG3232AEIMT/TR#C7432150HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,613 | ₹37.32 · 1,613 in stock | View |
| SP3232AEIMT/TR#C7432156HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 50 | ₹34.07 · 50 in stock | View | |
 | HGX3232AEIMT/TR#C7432144HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 460 | ₹55.91 · 460 in stock | View |
 | MAX3232AEIMT/TR#C7432162HGSEMI · TSSOP-16 | HGSEMI | TSSOP-16 | 1,820 | ₹37.39 · 1,820 in stock | View |
