HGSEMIDatasheet (PDF)

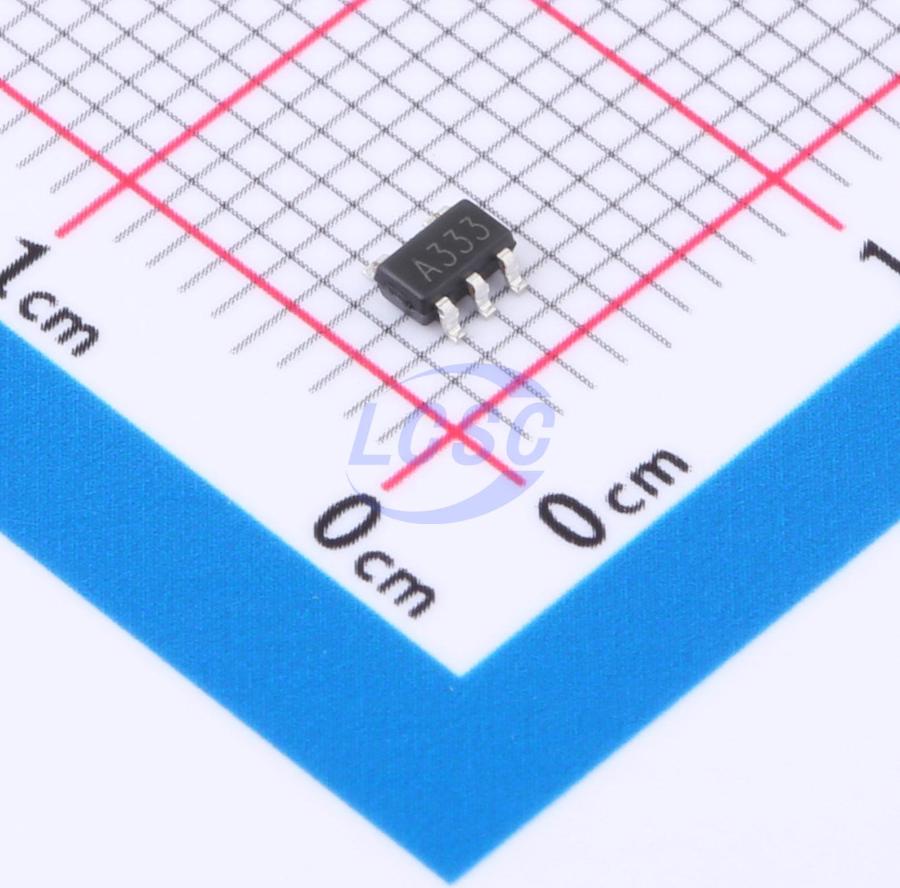

HGA333M5/TR
5mA 1 2uV 0.16V/us 102dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT23-5L Instrumentation, Op Amps, Buffer Amps
SOT23-5LRoHSActive
CMOS operational amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGA333M5/TR
- Store part #
- C3007934
- Package / case
- SOT23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C3007934
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.90 | ₹244.50 |
| 50+ | ₹38.04 | ₹1,902.00 |
| 150+ | ₹33.25 | ₹4,987.50 |
| 500+ | ₹27.39 | ₹13,695.00 |
| 3,000+ | ₹24.78 | ₹74,340.00 |
| 6,000+ | ₹23.26 | ₹1,39,560.00 |
5 × ₹48.90
₹244.50
excl. GST
₹288.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HGA333M5/TR
₹244.50 for 5 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 102dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
