HGSEMIDatasheet (PDF)

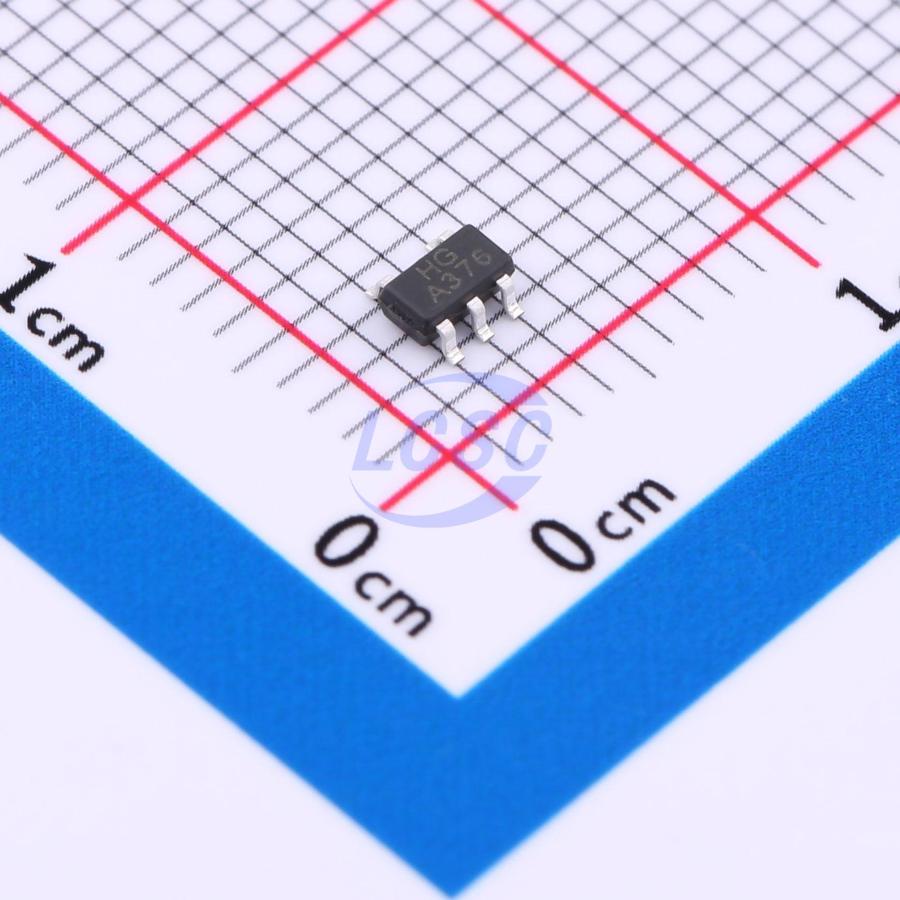

HGA376M5/TR
30mA 1 30uV 2.5V/us 20pA 110dB 550uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Single-Supply, Zero-Drift CMOS Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGA376M5/TR
- Store part #
- C2902516
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,637 in stock
#C2902516
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.45 | ₹54.45 |
| 10+ | ₹42.96 | ₹429.60 |
| 30+ | ₹38.20 | ₹1,146.00 |
| 100+ | ₹31.90 | ₹3,190.00 |
| 500+ | ₹26.26 | ₹13,130.00 |
| 1,000+ | ₹24.52 | ₹24,520.00 |
1 × ₹54.45
₹54.45
excl. GST
₹64.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HGA376M5/TR
₹54.45 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 2.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -45℃~+125℃
- Ib - Input Bias Current
- 20pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 550uA
- Gain Bandwidth Product
- 4.5MHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG376M5/TR#C2926365HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,924 | ₹37.63 · 2,924 in stock | View |
 | AD8628M5/TR#C47411542HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,655 | ₹35.84 · 2,655 in stock | View |
