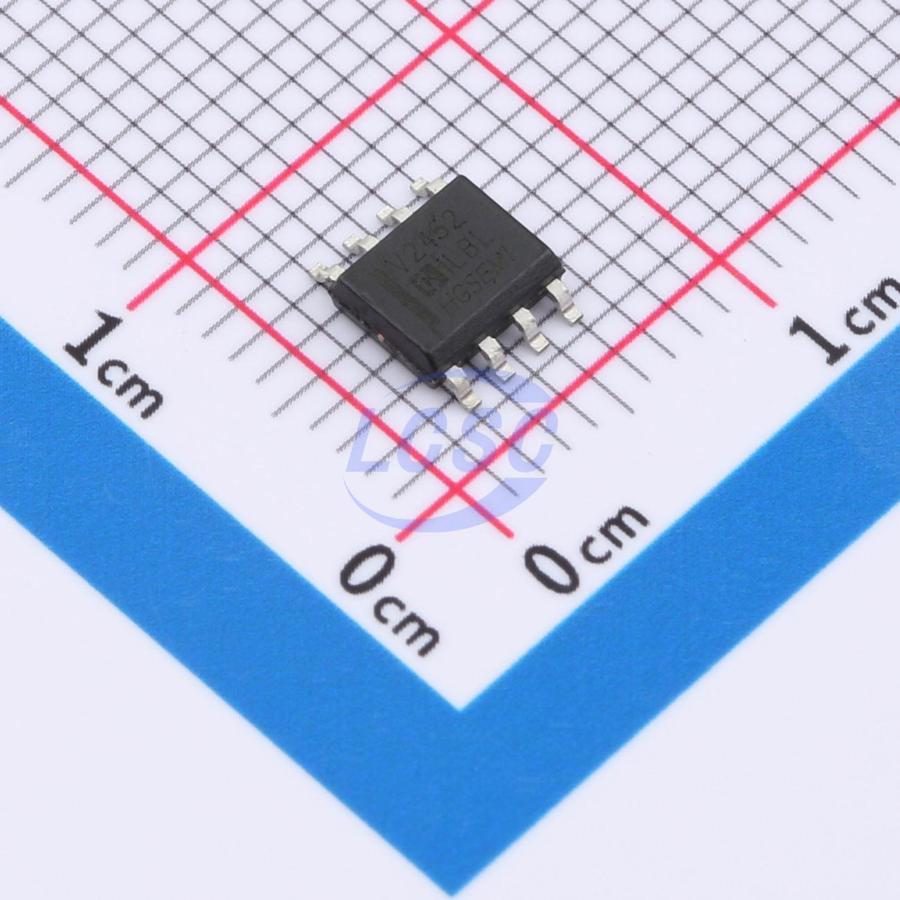

HGV2452M/TR

58mA 2 3.5mV 70V/ms 1pA 114dB 5.5uA 150kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

150KHz CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: HGSEMI
Manufacturer part #: HGV2452M/TR
Store part #: C22446771
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,474 in stock

#C22446771

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹82.04	₹82.04
10+	₹66.07	₹660.70
30+	₹58.09	₹1,742.70
100+	₹50.10	₹5,010.00
500+	₹45.31	₹22,655.00
1,000+	₹42.92	₹42,920.00

Quantity (min 1)

1 × ₹82.04

₹82.04

excl. GST

₹96.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

HGV2452M/TR

₹82.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 58mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 70V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 114dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 5.5uA
Gain Bandwidth Product: 150kHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 85nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.264 g

Overview

The HGV245X family have a high gain-bandwidth product of 150KHz, a slew rate of 0.07V/μs, and a quiescent current of 5.5μA amplifier at 5V. The HGV245X family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for HGV245X family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The HGV2451 single is available in Green SOT-23-5 packages. The HGV2452 Dual is available in Green SOP-8 and MSOP-8 packages. The HGV2454 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation Portable Systems

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 150KHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 5.5μA per Amplifier (Typ)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package: HGV2451 Available in SOT23-5 Package, HGV2452 Available in SOP-8 and MSOP-8 Packages, HGV2454 Available in SOP-14 and TSSOP-14 Packages
