HGSEMI

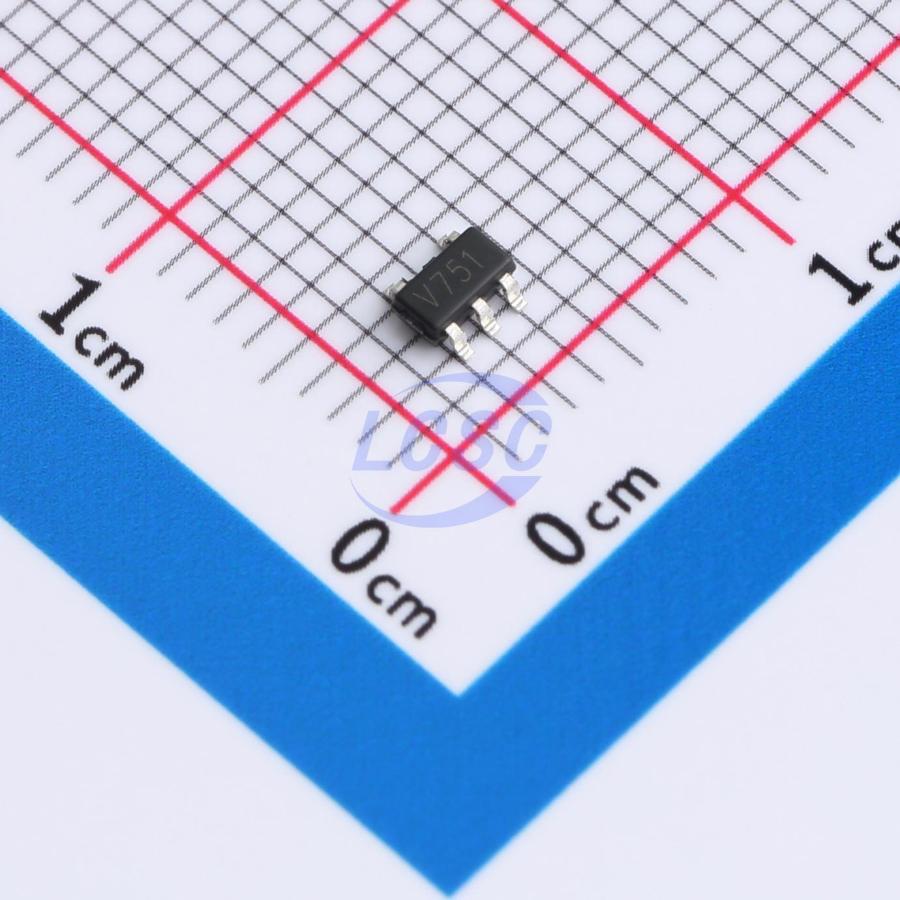

HGV751M5/TR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5RoHSActive

Precision, low-noise, CMOS, rail-to-rail input/output operational amplifier

Manufacturer: HGSEMI
Manufacturer part #: HGV751M5/TR
Store part #: C7432295
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,075 in stock

#C7432295

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹33.88	₹169.40
50+	₹29.32	₹1,466.00
150+	₹27.37	₹4,105.50
500+	₹24.77	₹12,385.00
3,000+	₹23.68	₹71,040.00
6,000+	₹23.02	₹1,38,120.00

Quantity (min 5, multiples of 5)

5 × ₹33.88

₹169.40

excl. GST

₹199.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HGV751M5/TR

₹169.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 80mA
Number of Channels: 1
Vos - Input Offset Voltage: 65uV
Slew Rate: 5V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 4.5uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation;Overvoltage protection
Input Voltage Noise Density: 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The HGV751, HGV752, and HGV754 are single, dual, and quad, rail-to-rail input and output, single-supply amplifiers featuring ultralow offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, ultralow input bias current, and high-speed characteristics makes these amplifiers suitable for a wide range of applications. Filters, integrators, photodiode amplifiers, and high-impedance sensors can all benefit from this combination of features. Wide bandwidth and low distortion benefit audio and other AC applications. Specific applications include optical control loops, portable and loop-powered instrumentation, and audio amplification in portable equipment. The HGV751, HGV752, and HGV754 are rated over the -40°C to +125°C extended industrial temperature range. The HGV751 single-channel amplifier is available in a 5-pin SOT-23-5 package. The HGV752 dual-channel amplifier is available in 8-pin MSOP and SOP SMT packages. The HGV754 quad-channel amplifier is available in 14-pin TSSOP and SOP packages.

Applications

Photodiode amplification
Battery-powered instrumentation
Multi-pole filters
Sensors
Barcode scanner audio
Audio

Key features

Low offset voltage: 65μV (max)
Low input bias current: 1pA (max)
Low noise: 8nV/√Hz
Wide bandwidth: 10 MHz
High open-loop gain: 1000V/mV
Unity-gain stable
Single-supply operation: 2.7 V to 5.5 V
