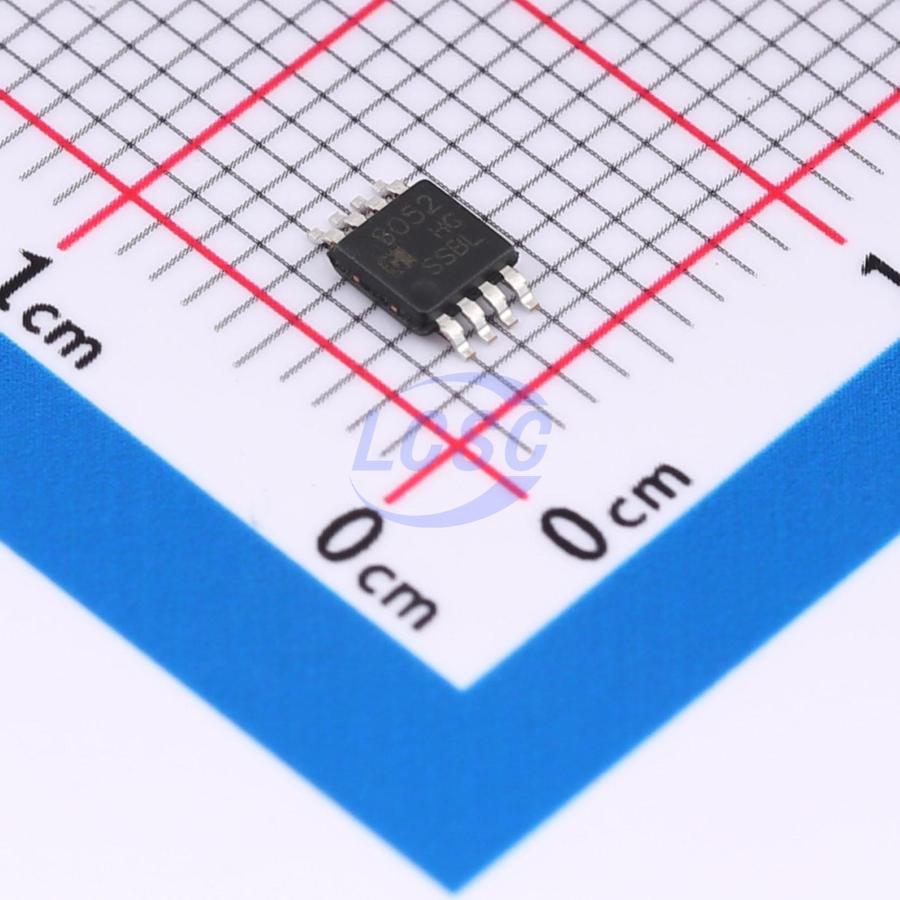

HGV8052MM/TR
80mA 2 8mV 88V/us 1pA 80dB 2.8mA 250MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
250MHz CMOS Rail-to-Rail Output Opamps
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8052MM/TR
- Store part #
- C7432257
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,248 in stock
#C7432257
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.15 | ₹47.15 |
| 10+ | ₹41.29 | ₹412.90 |
| 30+ | ₹38.68 | ₹1,160.40 |
| 100+ | ₹35.42 | ₹3,542.00 |
| 500+ | ₹33.90 | ₹16,950.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹47.15
₹47.15
excl. GST
₹55.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HGV8052MM/TR
₹47.15 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 8mV
- Slew Rate
- 88V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 250MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 4.9nV/√Hz@1MHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD8092MM/TR#C49023287HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,868 | ₹60.54 · 2,868 in stock | View |
