HGSEMIDatasheet (PDF)

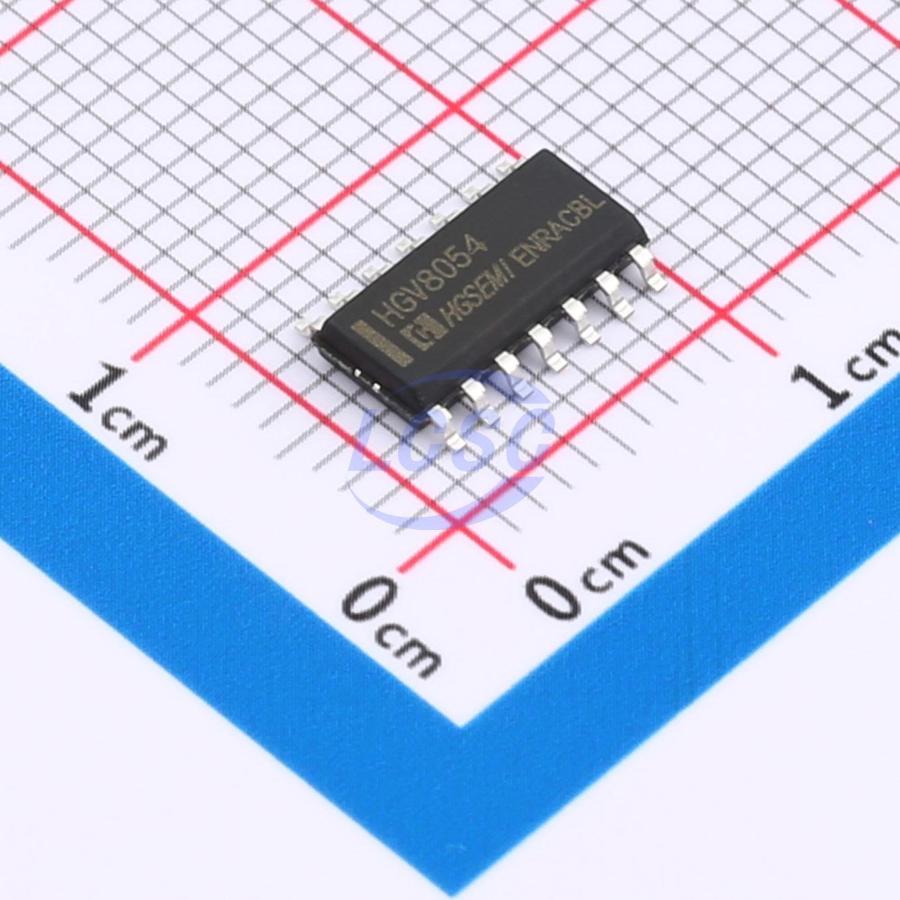

HGV8054M/TR
80mA 4 2mV 4.5V/us 1pA 65dB 2.8mA 250MHz Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
250MHZ CMOS Rail-to-Rail Output Opamps
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8054M/TR
- Store part #
- C3007932
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,224 in stock
#C3007932
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.26 | ₹57.26 |
| 10+ | ₹51.01 | ₹510.10 |
| 30+ | ₹48.00 | ₹1,440.00 |
| 100+ | ₹45.00 | ₹4,500.00 |
| 500+ | ₹40.89 | ₹20,445.00 |
| 1,000+ | ₹40.03 | ₹40,030.00 |
1 × ₹57.26
₹57.26
excl. GST
₹67.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGV8054M/TR
₹57.26 for 1 + GST
Specifications
- Output Current
- 80mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 4.5V/us
- Input Offset Current(Ios)
- 2pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 250MHz
- Input Voltage Noise Density
- 4.9nV/√Hz@1MHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
