HGSEMIDatasheet (PDF)

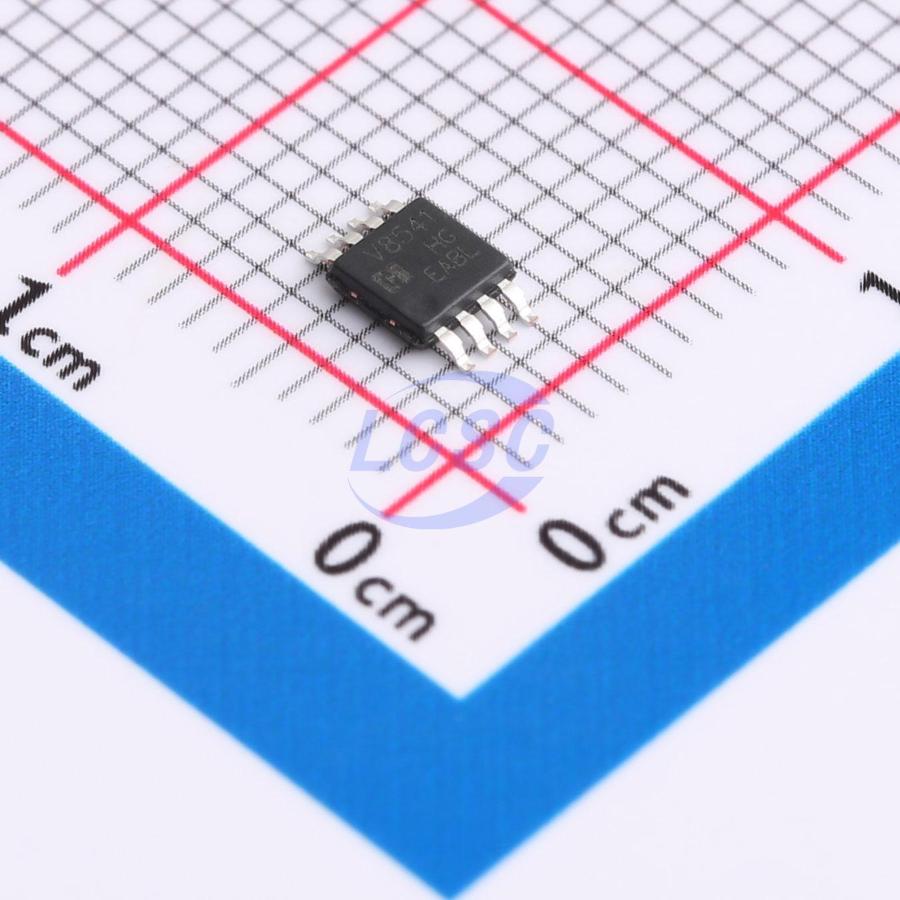

HGV8541MM/TR
15mA 1 1mV 750V/ms 45dB 4pA 38uA 980kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Single-supply rail-to-rail input and output amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8541MM/TR
- Store part #
- C5116324
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C5116324
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.16 | ₹95.80 |
| 50+ | ₹16.92 | ₹846.00 |
| 150+ | ₹15.96 | ₹2,394.00 |
| 500+ | ₹14.76 | ₹7,380.00 |
| 3,000+ | ₹12.75 | ₹38,250.00 |
| 6,000+ | ₹12.44 | ₹74,640.00 |
5 × ₹19.16
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HGV8541MM/TR
₹95.80 for 5 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 750V/ms
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 45dB
- Ib - Input Bias Current
- 4pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 38uA
- Gain Bandwidth Product
- 980kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721AIMM/TR#C49384179HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 1,970 | ₹14.95 · 1,970 in stock | View |
| LMV721MM/TR#C42435775HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,960 | ₹17.32 · 2,960 in stock | View | |
