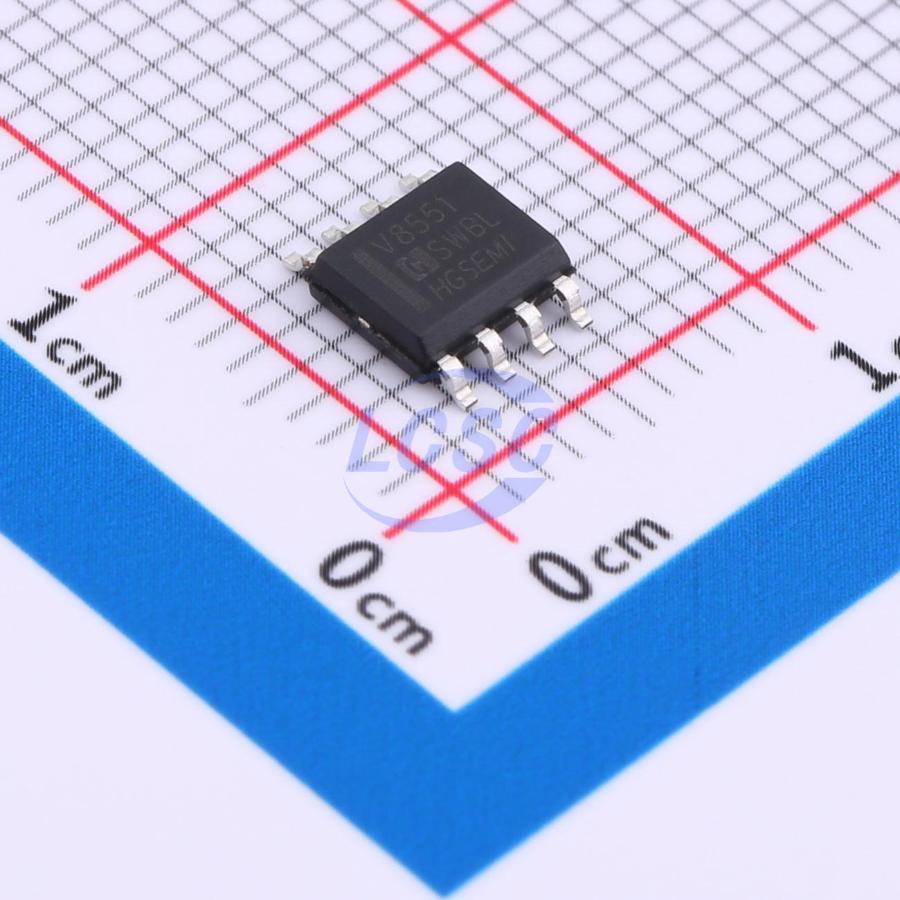

HGV8551M/TR
30mA 1 5uV 0.84V/us 20pA 110dB 1.5MHz 180uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
1.8MHz Zero-Drift CMOS Rail IO Opamp
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8551M/TR
- Store part #
- C7432198
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C7432198
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.73 | ₹178.65 |
| 50+ | ₹31.21 | ₹1,560.50 |
| 150+ | ₹29.28 | ₹4,392.00 |
| 500+ | ₹26.91 | ₹13,455.00 |
| 2,500+ | ₹25.84 | ₹64,600.00 |
| 5,000+ | ₹25.19 | ₹1,25,950.00 |
5 × ₹35.73
₹178.65
excl. GST
₹210.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGV8551M/TR
₹178.65 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5uV
- Slew Rate
- 0.84V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 20pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Gain Bandwidth Product
- 1.5MHz
- Quiescent Current
- 180uA
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Built-in compensation
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.302 g
