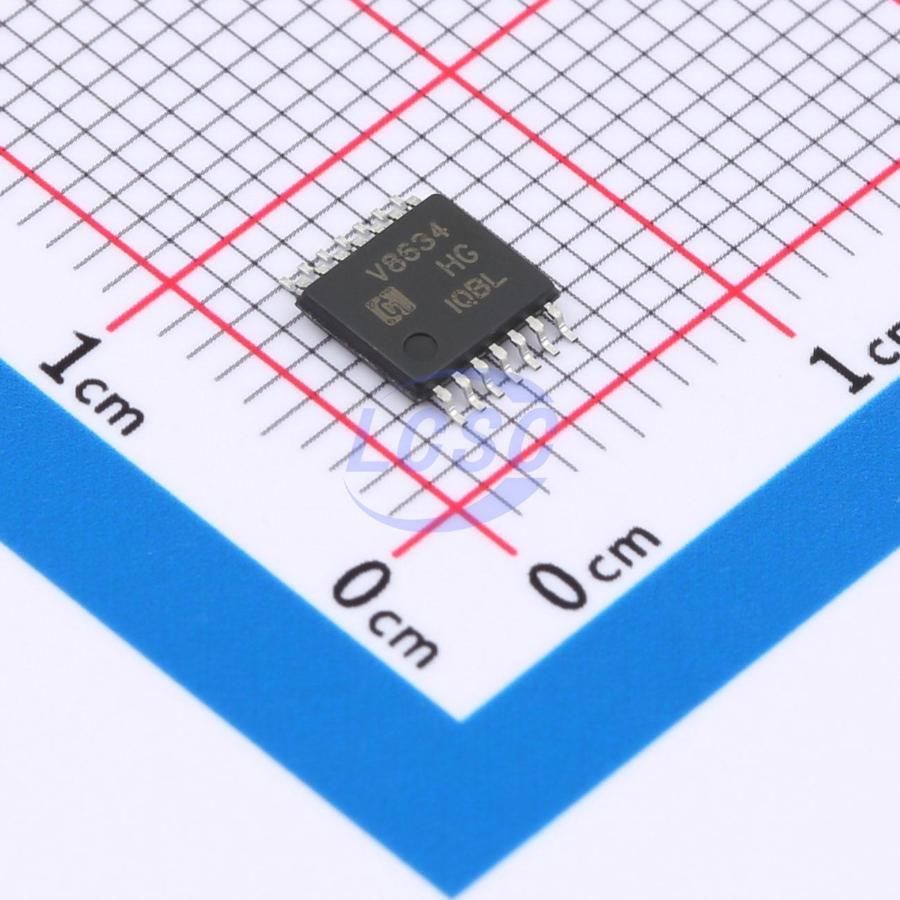

HGV8634MT/TR
53mA 4 3.5mV 4.2V/us 1pA 90dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps
TSSOP-14RoHSActive
6MHz Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8634MT/TR
- Store part #
- C5116307
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C5116307
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.20 | ₹156.00 |
| 50+ | ₹27.25 | ₹1,362.50 |
| 150+ | ₹25.56 | ₹3,834.00 |
| 500+ | ₹23.44 | ₹11,720.00 |
| 2,500+ | ₹22.50 | ₹56,250.00 |
| 5,000+ | ₹21.94 | ₹1,09,700.00 |
5 × ₹31.20
₹156.00
excl. GST
₹184.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGV8634MT/TR
₹156.00 for 5 + GST
Specifications
- Output Current
- 53mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 4.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 470uA
- Gain Bandwidth Product
- 6MHz
- Input Voltage Noise Density
- 13nV/√Hz@1kHz
- Dual Supply
- -1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA4374MT/TR#C20613269HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,323 | ₹65.59 · 2,323 in stock | View |
| AD8608MT/TR#C41415987HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,276 | ₹108.95 · 2,276 in stock | View | |
 | LMV724MT/TR#C5160101HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 552 | ₹67.14 · 552 in stock | View |
 | HGV6024MT/TR#C7432315HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,488 | ₹48.05 · 2,488 in stock | View |
 | AD8054MT/TR#C7432381HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,389 | ₹79.31 · 2,389 in stock | View |
