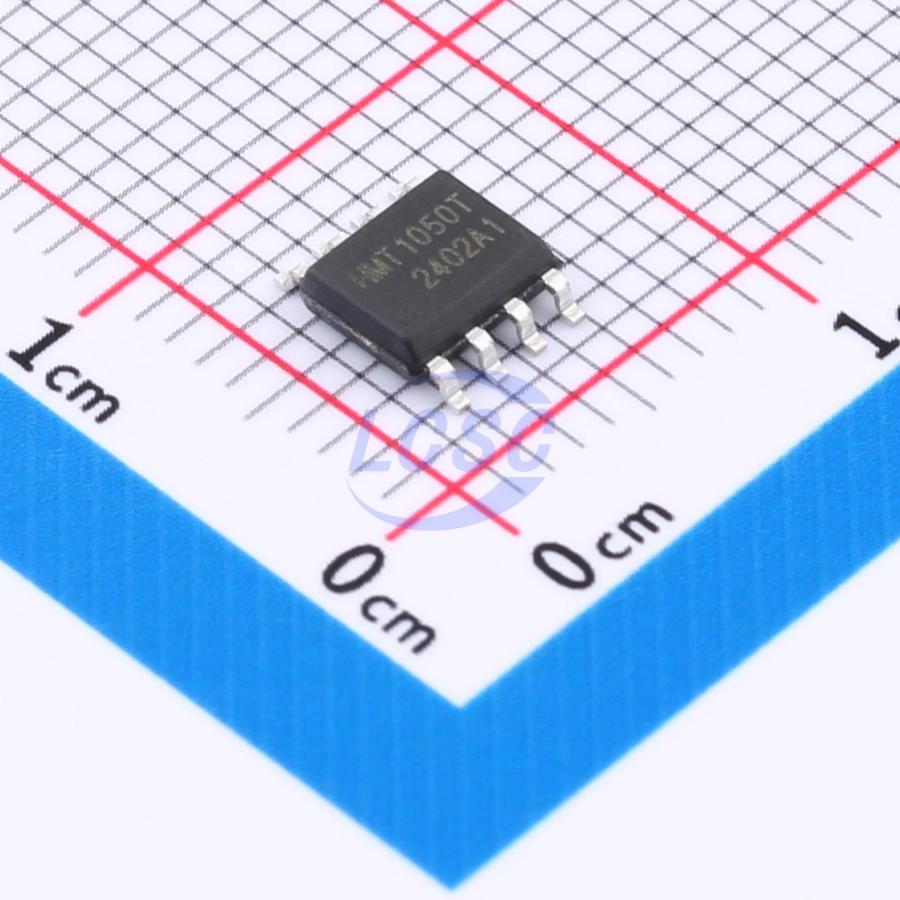

HMT1050T

The HMT1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. As a CAN transceiver, this device provides differential transmit capability to the bus and differential receive capability to a CAN controller at signaling rates up to 1 megabit per second (M/bps). The HMT1050 is designed for operation in especially harsh environments. As a result, the device features cross-wire, overvoltage and loss of ground protection from -27V to 40V, overtemperature shutdown, a –12V to 12V common-mode range, and will withstand voltage transients from -200V to 200V according to ISO7637.

Applications

• Industrial Automation
• High-Speed CAN Bus for Automotive Applications
• SAE J1939 Standard Data Bus Interface
• ISO 11783 Standard Data Bus Interface
• NMEA 2000 Standard Data Bus Interface

Key features

• Fully compatible with the “ISO 11898” standard
• High speed (up to 1 M/Baud)
• At least 110 nodes can be connected
• Improved Replacement for the TJA1050
• ±12 kV ESD Protection
• Bus-Fault Protection of -50V to 50V
• Thermally protected
• Transmit Data (TXD) dominant time-out function
• Silent mode in which the transmitter is disabled
