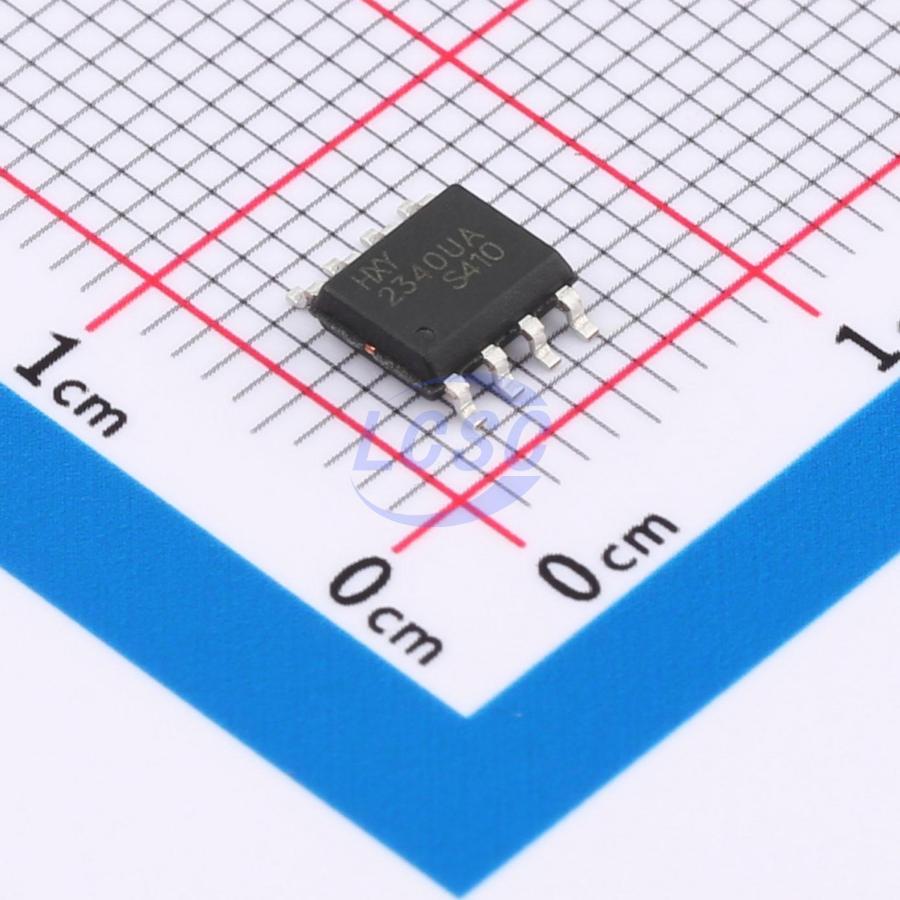

HOPA2340UA

75mA 500uV 10.5V/us 5pA 84dB 685uA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Single-, Dual-, and Quad-Channel Operational Amplifiers

Manufacturer: HXY MOSFET
Manufacturer part #: HOPA2340UA
Store part #: C22392768
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,914 in stock

#C22392768

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹87.17	₹87.17
10+	₹77.42	₹774.20
30+	₹72.65	₹2,179.50
100+	₹67.66	₹6,766.00
500+	₹64.84	₹32,420.00
1,000+	₹63.32	₹63,320.00

Quantity (min 1)

1 × ₹87.17

₹87.17

excl. GST

₹102.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HOPA2340UA

₹87.17 for 1 + GST

Specifications

Output Current: 75mA
Vos - Input Offset Voltage: 500uV
Slew Rate: 10.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 685uA
Gain Bandwidth Product: 11MHz
Features: Built-in compensation;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 8.3nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.121 g

Overview

The HOPAx340 series single, dual, and quad operational amplifiers represent a new generation of general-purpose, low-power op amps. The series features rail-to-rail input and output swing, low quiescent current (typical 685µA), wide bandwidth (11MHz), and ultra-low noise (8.3nV/√Hz at 1kHz), making it highly attractive for a wide range of battery-powered applications that require a good balance between cost and performance, such as audio output, motor phase current sensing, photodiode amplification, barcode scanners, and white goods. Low input bias current enables these amplifiers to be used in applications with megohm-level source impedances. The robust design of the HOPAx340 amplifiers provides ease of use for circuit designers: unity-gain stability with capacitive loads up to 500pF, integrated RF/EMI rejection filters, no phase reversal under overdrive conditions, and high ESD protection (5kV Human Body Model). The HOPAx340 amplifiers are optimized for voltage ranges from as low as +1.8V (±0.9V) to as high as +5.5V (±2.75V) over a temperature range of 0℃ to 70℃, and operate over an extended temperature range of −40℃ to +125℃ at supply voltages from +2.0V (±1.0V) to +5.5V (±2.75V).
