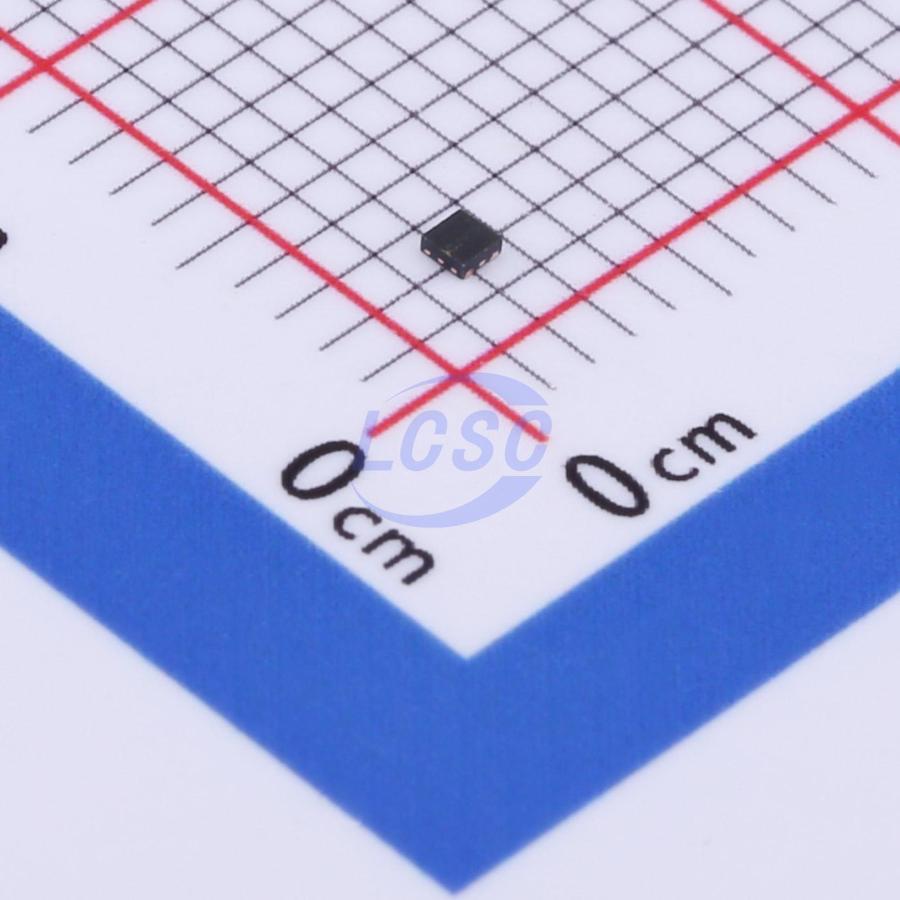

HSUL8712
Battery Protection IC Lithium Battery UDFN-4-EP(1x1)
Built-in MOSFET Lithium Battery Protection Chip
- Manufacturer
- HUASHUO
- Manufacturer part #
- HSUL8712
- Store part #
- C845627
- Package / case
- UDFN-4-EP(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,905 in stock
#C845627
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.60 | ₹108.00 |
| 50+ | ₹17.01 | ₹850.50 |
| 150+ | ₹15.04 | ₹2,256.00 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 2,500+ | ₹10.33 | ₹25,825.00 |
| 5,000+ | ₹9.68 | ₹48,400.00 |
5 × ₹21.60
₹108.00
excl. GST
₹127.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HSUL8712
₹108.00 for 5 + GST
Specifications
- Quiescent Current
- 600nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 0V~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 1.1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The HSUL8712 is a single-cell lithium battery protection IC with integrated MOSFETs. It features ultra-low power consumption and very low on-resistance integrated MOSFETs. The IC provides comprehensive protection functions including overcharge, charge overcurrent, overdischarge, discharge overcurrent, overtemperature, and short circuit protection, ensuring safe and efficient cell operation. The HSUL8712 adopts an ultra-compact DFN1X1-4L package with a profile height of 0.37mm. Only one resistor and one capacitor are required as external components, making the application extremely simple, reliable, and safe.
Applications
- Single-cell Li-Ion rechargeable battery pack
- Single-cell Li-Polymer rechargeable battery pack
Key features
- Integrated 60mΩ MOSFET
- DFN1X1-4L package with excellent thermal dissipation
- Integrated over-temperature protection
- Triple over-discharge current detection protection
- Ultra-low quiescent and sleep current: 2.6uA quiescent operating current, 0.6uA sleep current
- Lead-free, RoHS compliant
