HTCSEMIDatasheet (PDF)

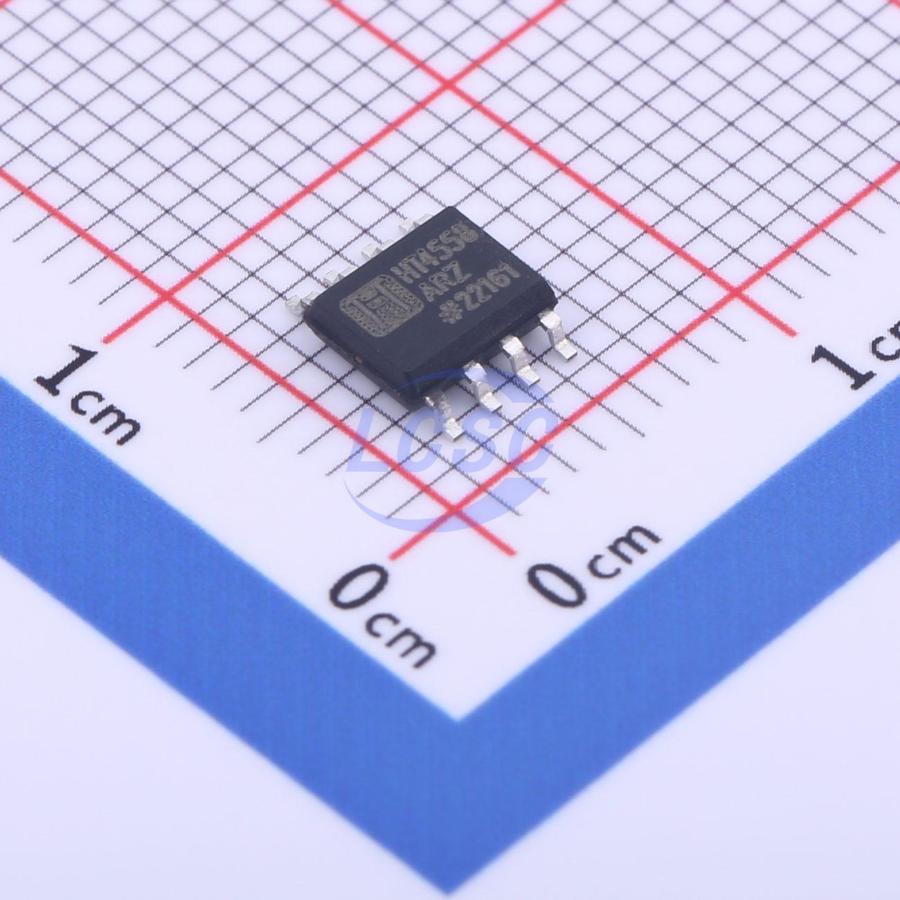

HT4558ARZ
20mA 2 5mV 1.6V/us 500nA 70dB 5.6mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifiers
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT4558ARZ
- Store part #
- C2834459
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C2834459
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.38 | ₹86.90 |
| 50+ | ₹13.75 | ₹687.50 |
| 150+ | ₹11.92 | ₹1,788.00 |
| 500+ | ₹10.56 | ₹5,280.00 |
| 2,500+ | ₹9.47 | ₹23,675.00 |
| 5,000+ | ₹8.92 | ₹44,600.00 |
5 × ₹17.38
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT4558ARZ
₹86.90 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 1.6V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Quiescent Current
- 5.6mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Dual Supply
- -16V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.589 g
Overview
The HT4558A is dual general purpose operational amplifiers. The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage follower application. The devices are short circuit protected and the internal frequency compensation ensures stability without external components.
Key features
- Short Circuit Protection
- Wide common-mode and differential ranges
- No frequency compensation required
- Low power consumption
- No latch-up
- 3 MHz unity gain bandwidth guaranteed
- Gain and phase match between amplifiers
