TDSEMICDatasheet (PDF)

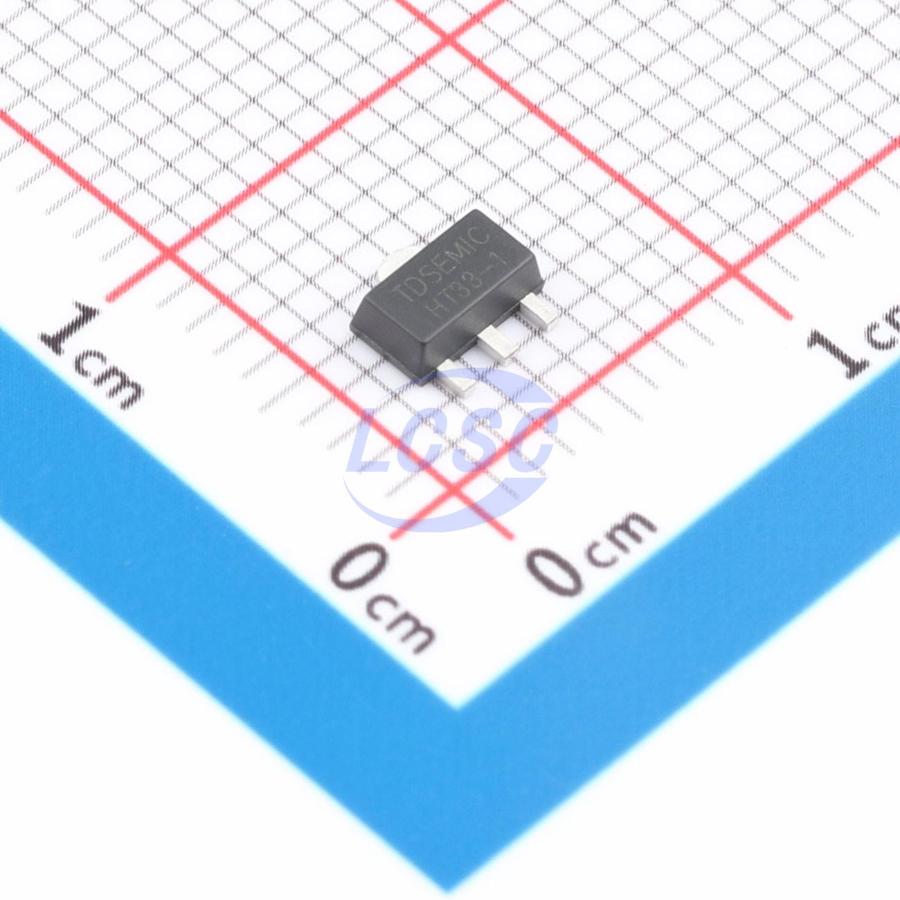

HT7133-1/H-TD(55V)
3.3V Positive Fixed SOT89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT89RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7133-1/H-TD(55V)
- Store part #
- C52195508
- Package / case
- SOT89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,220 in stock
#C52195508
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.58 | ₹72.90 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹10.02 | ₹1,503.00 |
| 1,000+ | ₹8.88 | ₹8,880.00 |
| 2,000+ | ₹7.96 | ₹15,920.00 |
| 5,000+ | ₹7.51 | ₹37,550.00 |
5 × ₹14.58
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7133-1/H-TD(55V)
₹72.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
This device is a low-dropout linear regulator fabricated in CMOS technology, capable of delivering 150mA output current with a maximum allowable input voltage of 55V. It offers multiple fixed output voltage options ranging from 2.5V to 5.0V. The device features low dropout voltage and low quiescent current.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533H-TD(55V)#C49023474TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 26,950 | ₹13.31 · 26,950 in stock | View |
 | HT7133H-TD(55V)#C49023492TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 38,330 | ₹9.71 · 38,330 in stock | View |
 | HT7533-1/H-TD(55V)#C52195507TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 12,180 | ₹15.51 · 12,180 in stock | View |
