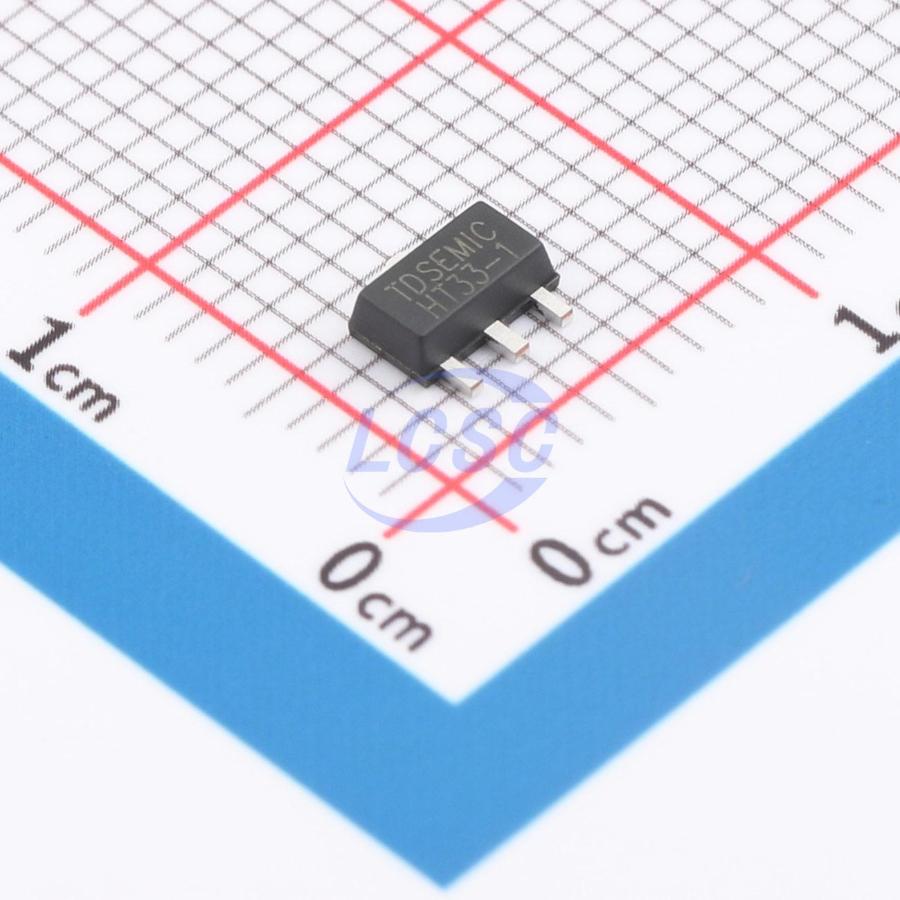

HT7533-1/H-TD(55V)
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7533-1/H-TD(55V)
- Store part #
- C52195507
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,180 in stock
#C52195507
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.51 | ₹77.55 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.65 | ₹1,597.50 |
| 1,000+ | ₹9.45 | ₹9,450.00 |
| 2,000+ | ₹8.47 | ₹16,940.00 |
| 5,000+ | ₹7.99 | ₹39,950.00 |
5 × ₹15.51
₹77.55
excl. GST
₹91.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533-1/H-TD(55V)
₹77.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+120℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 55V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
The 75xx series is a low-dropout linear regulator fabricated in CMOS technology, capable of delivering an output current of 150mA with a maximum allowable input voltage of 55V. The series offers multiple fixed output voltage options ranging from 2.5V to 5.0V. With its low dropout voltage and low quiescent current characteristics, it is widely used in power supply applications for various audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption and low dropout
- Low temperature coefficient
- Maximum input voltage: 55V
- Typical quiescent current: 2.5uA
- Output current: 150mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, SOT23-5, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533H-TD(55V)#C49023474TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 26,950 | ₹13.31 · 26,950 in stock | View |
 | HT7133H-TD(55V)#C49023492TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 38,330 | ₹9.71 · 38,330 in stock | View |
 | HT7133-1/H-TD(55V)#C52195508TDSEMIC · SOT89 | TDSEMIC | SOT89 | 9,220 | ₹14.58 · 9,220 in stock | View |
