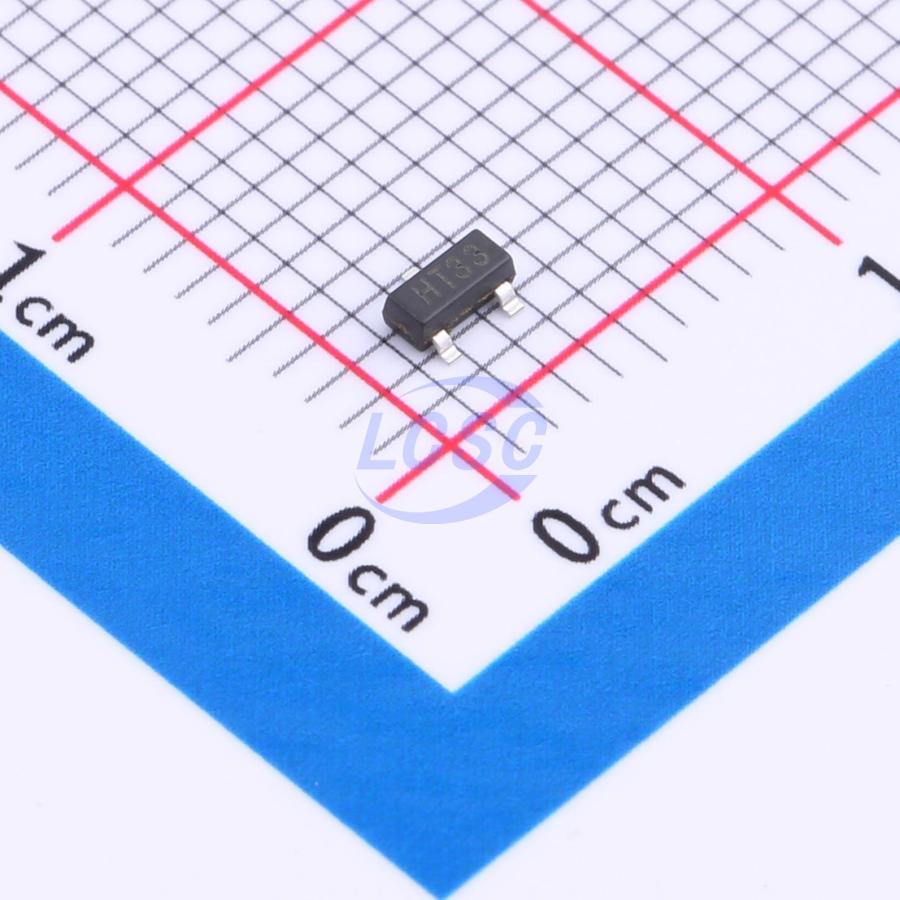

HT7133
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7133
- Store part #
- C2984876
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C2984876
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.31 | ₹63.10 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 3,000+ | ₹3.63 | ₹10,890.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹6.31
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7133
₹63.10 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
HT71XX series are low-power, high-voltage regulators fabricated using CMOS process, with a maximum input voltage of 18V and an output voltage range of 2–5V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature drift: 50 ppm/℃ typical
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX7533#C296155hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 720 | ₹3.97 · 720 in stock | View |
 | HX7133#C296187hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 860 | ₹3.72 · 860 in stock | View |
 | HT7133H23#C2984957hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 2,340 | ₹8.78 · 2,340 in stock | View |
 | HT7533H23#C2984959hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 2,520 | ₹8.10 · 2,520 in stock | View |
