HOLTEKDatasheet (PDF)

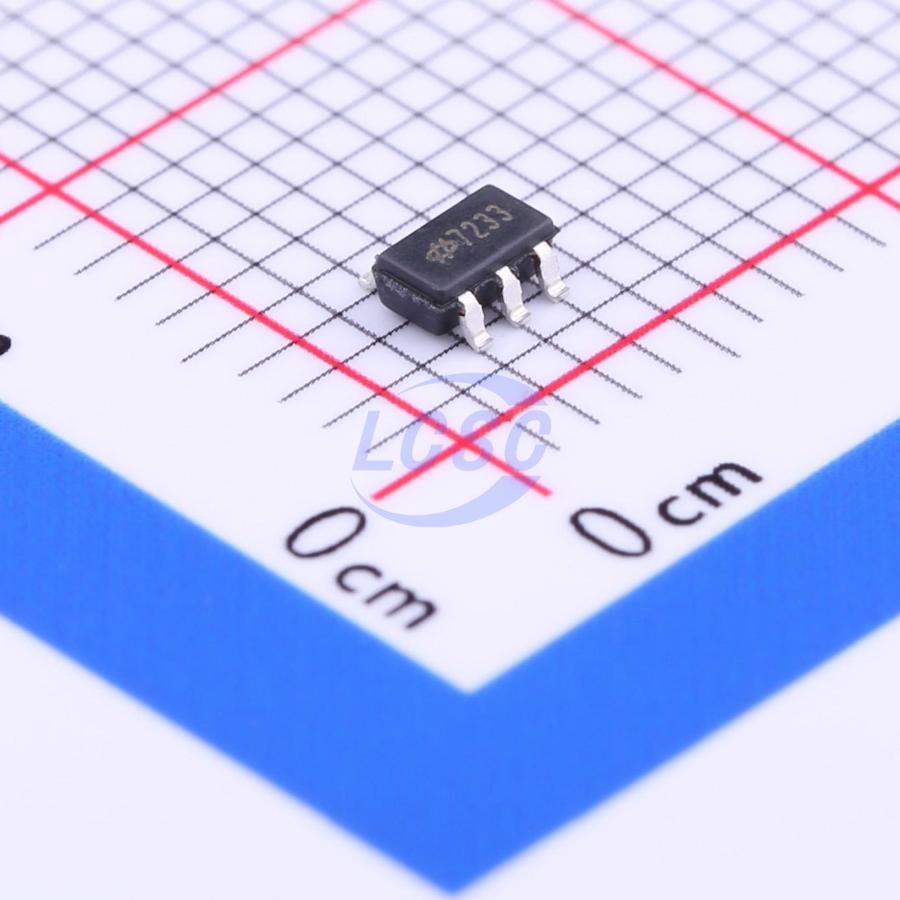

HT7233
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA TinyPower LDO
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7233
- Store part #
- C77938
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,760 in stock
#C77938
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.21 | ₹181.05 |
| 50+ | ₹29.11 | ₹1,455.50 |
| 150+ | ₹26.06 | ₹3,909.00 |
| 500+ | ₹22.27 | ₹11,135.00 |
| 3,000+ | ₹17.24 | ₹51,720.00 |
| 6,000+ | ₹16.22 | ₹97,320.00 |
5 × ₹36.21
₹181.05
excl. GST
₹213.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7233
₹181.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The HT72xx series of positive, linear regulators features low quiescent current ( 4μA typ.) with low dropout voltage, making them ideal for battery applications. The space - saving 3 - pin SOT23 package is attractive for "Pocket" and "Hand Held" applications. The devices are capable of supplying 300mA of output current continuously. They are available with several fixed output voltages ranging from 1.8V to 5.0V. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents. These rugged devices have Thermal Shutdown and Current Limiting to prevent device failure under the "Worst" of operating conditions.
Applications
- Portable electronics
- Wireless devices
- Cordless phones
- PC peripherals
- Battery powered devices
- Electronic scales
Key features
- Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 4.5V, 5.0V type.
- Highly accuracy: ±2%
- Low voltage drop: 240mV (typ.), VOUT = 5.0V at 300mA
- Maximum Input Voltage: 8V
- Guaranteed output current: 300mA
- Low quiescent current: 4μA (typ.)
- Current limiting
- Over - temperature shutdown
- 3 - pin SOT23, 5 - pin SOT23 and 3 - pin SOT89 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ73AL33SE#C41367954PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 225 | ₹11.89 · 225 in stock | View |
 | SE8533L1-HF#C46641365Seaward Elec · SOT-23-5 | Seaward Elec | SOT-23-5 | 2,175 | ₹16.54 · 2,175 in stock | View |
 | SE8533L2-HF#C46641366Seaward Elec · SOT-23-5 | Seaward Elec | SOT-23-5 | 1,840 | ₹22.95 · 1,840 in stock | View |
 | HT7833#C164106HOLTEK · SOT-23-5 | HOLTEK | SOT-23-5 | 2,220 | ₹45.38 · 2,220 in stock | View |
 | RS3007-3.3ASYF5#C2912235RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,895 | ₹28.46 · 1,895 in stock | View |
