HTCSEMI

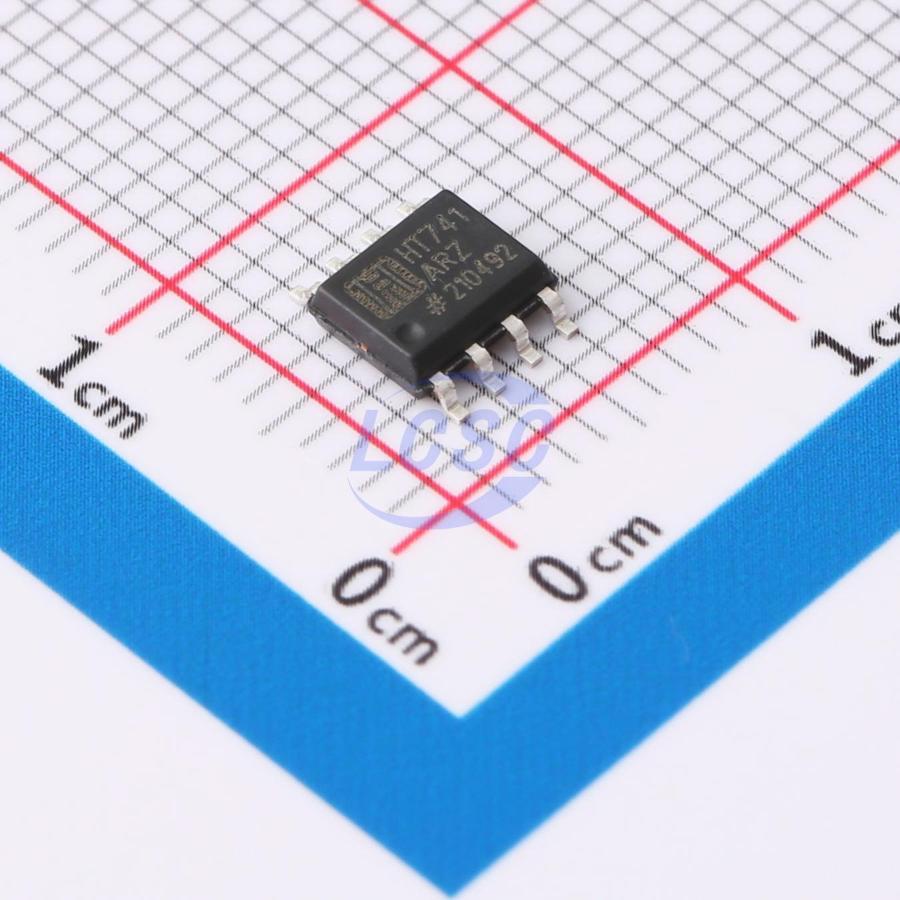

HT741ARZ

Standard (General Purpose) Amplifier 1 Circuit SOP-8

SOP-8RoHSActive

GENERAL PURPOSE SINGLE OPERATIONAL AMPLIFIER

Manufacturer: HTCSEMI
Manufacturer part #: HT741ARZ
Store part #: C5241919
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,380 in stock

#C5241919

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.84	₹79.20
50+	₹13.89	₹694.50
150+	₹13.06	₹1,959.00
500+	₹12.03	₹6,015.00
2,500+	₹11.56	₹28,900.00
5,000+	₹11.29	₹56,450.00

Quantity (min 5, multiples of 5)

5 × ₹15.84

₹79.20

excl. GST

₹93.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT741ARZ

₹79.20 for 5 + GST

Specifications

Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 250V/ms
Input Offset Current(Ios): 30nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 100nA
Common Mode Rejection Ratio(CMRR): 70dB
Quiescent Current: 2.8mA
Features: Decompensated stable
Dual Supply: 4.5V~20V;-20V~-4.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.23 g

Overview

Key features

Large input voltage range
No latch-up
High gain
Short-circuit protection
No frequency compensation
