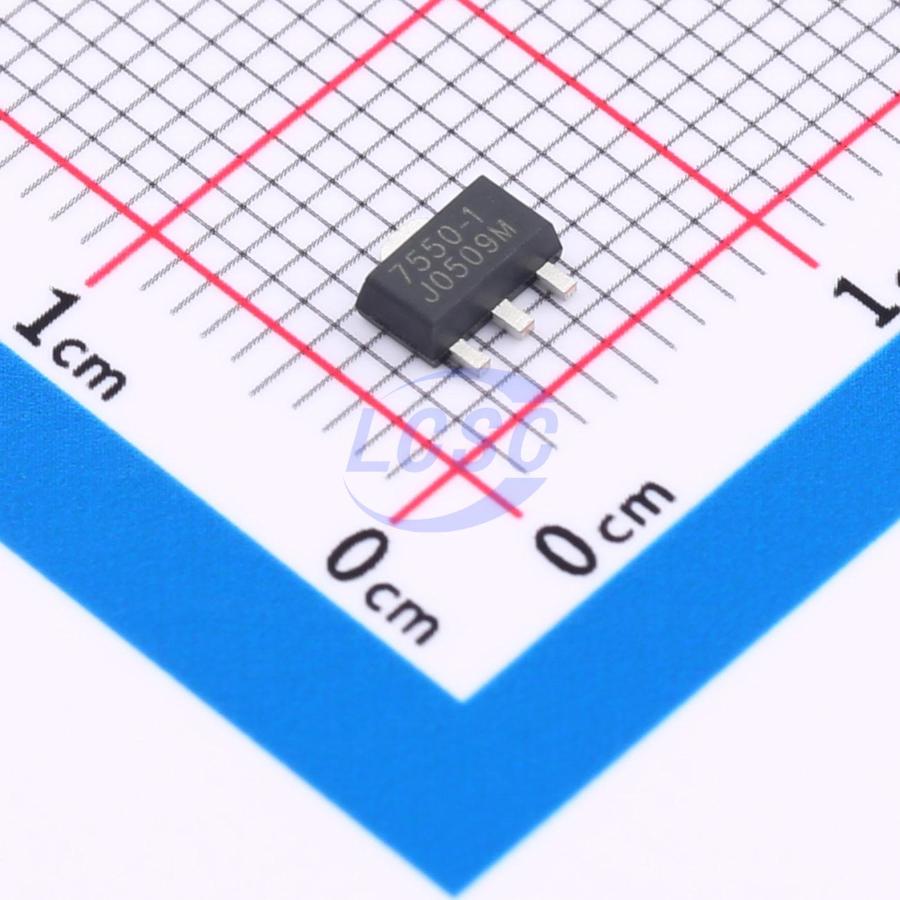

HT7550-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA 150mA SOT-89
SOT-89ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7550-1
- Store part #
- C22466421
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,540 in stock
#C22466421
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.05 | ₹60.50 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 1,000+ | ₹3.64 | ₹3,640.00 |
| 5,000+ | ₹3.25 | ₹16,250.00 |
| 10,000+ | ₹3.06 | ₹30,600.00 |
10 × ₹6.05
₹60.50
excl. GST
₹71.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550-1
₹60.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA;150mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.157 g
Overview
HT75xx-1 is a low dropout linear regulator fabricated using CMOS technology. It delivers a maximum output current of 100mA and supports an input voltage up to 36V. Several fixed output voltage options are available, ranging from 2.5V to 5.0V. The CMOS process ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550H-TD(55V)#C49023494TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 19,660 | ₹11.19 · 19,660 in stock | View |
 | HT7550-1/H-TD(55V)#C52195505TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 3,865 | ₹14.82 · 3,865 in stock | View |
 | HT7150H-TD(55V)#C49023490TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 21,100 | ₹9.86 · 21,100 in stock | View |
 | HT7150-1/H-TD(55V)#C52195506TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 35,400 | ₹10.53 · 35,400 in stock | View |
