HOLTEKDatasheet (PDF)

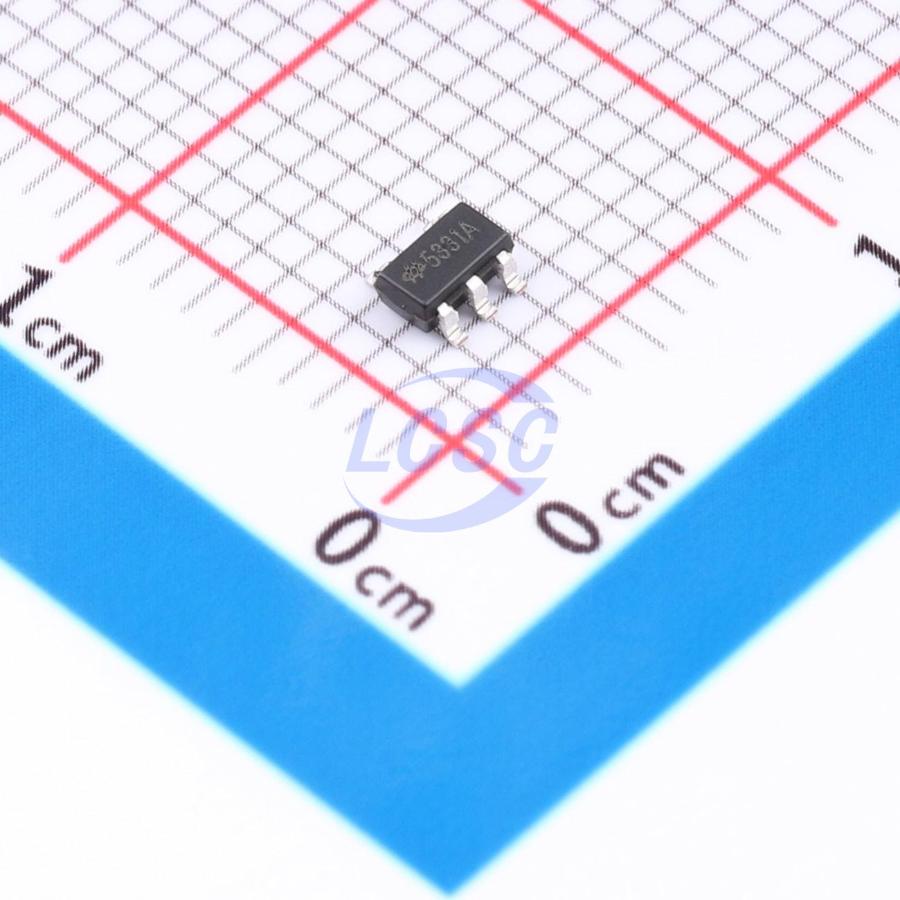

HT75R33-1A
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT75R33-1A
- Store part #
- C54556441
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,715 in stock
#C54556441
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.27 | ₹76.35 |
| 50+ | ₹12.17 | ₹608.50 |
| 150+ | ₹10.62 | ₹1,593.00 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.53 | ₹25,590.00 |
| 6,000+ | ₹8.07 | ₹48,420.00 |
5 × ₹15.27
₹76.35
excl. GST
₹90.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT75R33-1A
₹76.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Built-in soft-start;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The HT75Rxx-1 series are three-terminal, low-power, high-voltage regulators capable of delivering 150mA output current, with input voltages up to 30V, and multiple fixed output voltage options ranging from 2.1V to 12.0V. This series incorporates a soft-start function to control the output slew rate and prevent overshoot during power-up. Although primarily designed as fixed voltage regulators, they can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Output voltage accuracy: ±1%
- Low quiescent current: 1μA (typical)
- High output current: 150mA
- Soft-start function
- Compatible with 1μF ceramic output capacitor
- Package types: 3-pin SOT89, 5-pin SOT23
