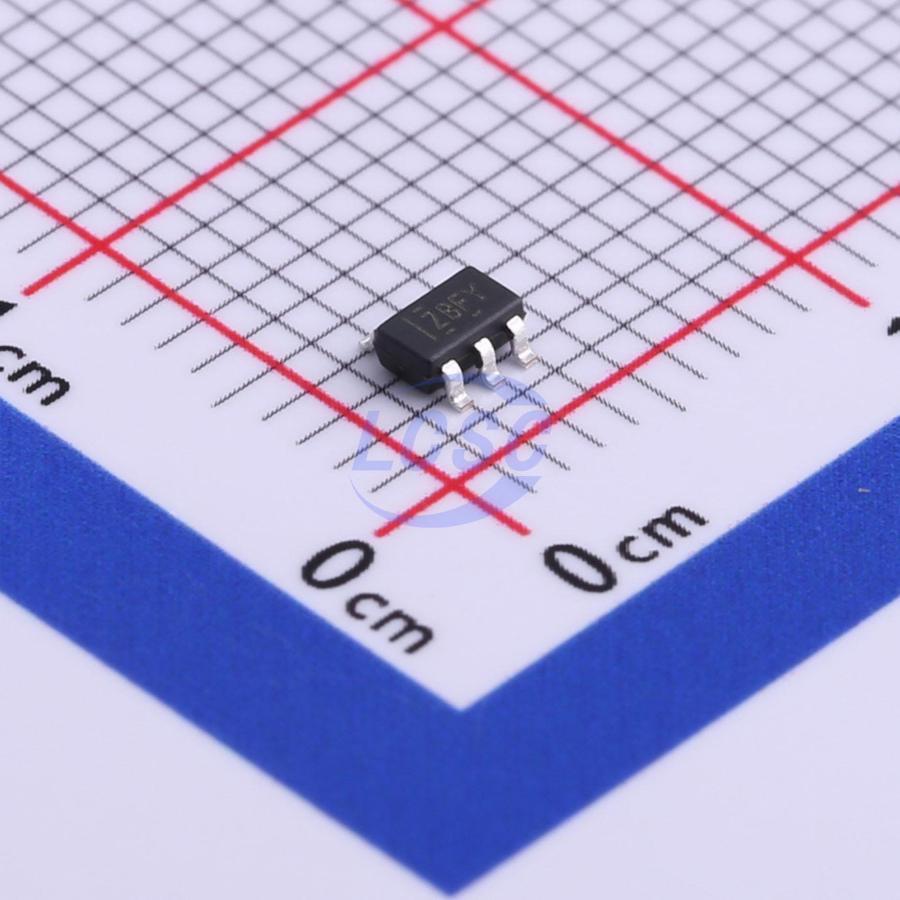

TPS7B6933DBVR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 40V, low IQ, low-dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS7B6933DBVR
- Store part #
- C527569
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,203 in stock
#C527569
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.89 | ₹58.89 |
| 10+ | ₹45.84 | ₹458.40 |
| 30+ | ₹40.21 | ₹1,206.30 |
| 100+ | ₹33.25 | ₹3,325.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹27.81 | ₹27,810.00 |
1 × ₹58.89
₹58.89
excl. GST
₹69.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7B6933DBVR
₹58.89 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Built-in soft-start;Input under-voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.089 g
Overview
The TPS7B69xx device is a low-dropout linear regulator that operates at up to 40 V VI. With only 15-μA (typical) quiescent current at light load, the device is applicable for standby microcontrol-unit systems, especially for always-on applications like emeters, fire alarms, and smoke detectors. The devices have integrated short-circuit and overcurrent protection. The TPS7B69xx device operates over a -40°C to 105°C temperature range.
Applications
- E-meters, Water Meters and Gas Meters
- Appliances and White Goods
- Fire Alarm, Smoke Detector
- Medical, Health, and Fitness Applications
Key features
- 4-V to 40-V Wide VI Input Voltage Range With up to 45-V Transient
- Maximum Output Current: 150 mA
- Low Quiescent Current (IQ):
- 15 μA Typical at Light Loads
- 25 μA Maximum Under Full Temperature
- 450 mV Typical Low Dropout Voltage at 100 mA Load Current
- 10 mV Line Regulation Maximum
- 20 mV Load Regulation Maximum
- Stable With Low-ESR Ceramic Output Capacitor (2.2 μF to 100 μF)
- Fixed 3.3-V and 5-V Output Voltage Options
- Integrated Fault Protection:
- Thermal Shutdown
- Short-Circuit Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7B6933QDBVRQ1#C781801TI · SOT-23-5 | TI | SOT-23-5 | 3,851 | ₹71.27 · 3,851 in stock | View |
 | WL2851E33-5/TR#C467852WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 4,920 | ₹21.18 · 4,920 in stock | View |
 | RS3015-3.3XF5#C42459565RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,060 | ₹18.44 · 1,060 in stock | View |
 | RS3015-3.3XF5-Q1#C54300660RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 175 | ₹25.00 · 175 in stock | View |
 | LTP3559-33NXT5#C19270067Linearin · SOT-23-5L | Linearin | SOT-23-5L | 525 | ₹43.16 · 525 in stock | View |
