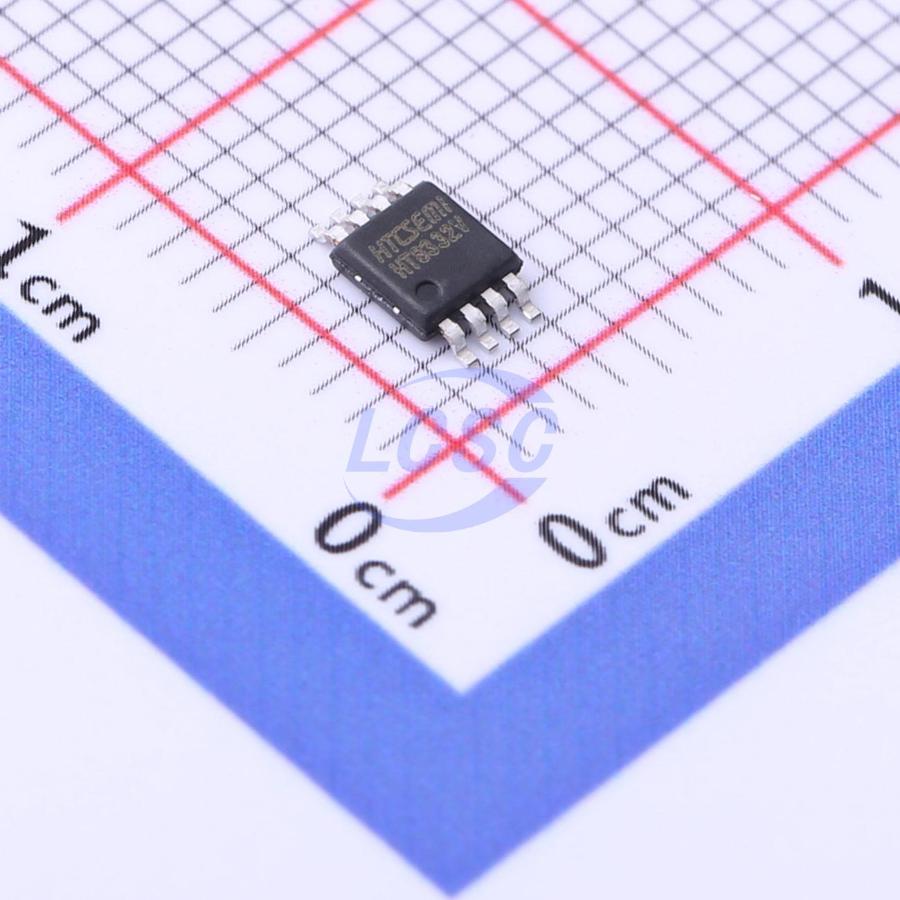

HT8332VRMZ

HT8331, HT8332, and HT8334 are single-channel, dual-channel, and quad-channel, rail-to-rail input and output, single-supply amplifiers with ultralow offset voltage and wide signal bandwidth. These amplifiers employ a novel patented trimming technique to achieve excellent performance without laser trimming. All devices operate from a 3 V to 5 V single supply. The combination of low offset, ultralow input bias current, and high-speed characteristics makes these amplifiers suitable for a wide range of applications. Filters, integrators, diode amplifiers, shunt sensors, and high-impedance sensors can all benefit from this combination of features. Wide bandwidth and low distortion make these devices ideal for audio and other AC applications. For most cost-sensitive applications, the V grade offers the same AC performance at a lower price point, but with reduced DC accuracy. The rail-to-rail input and output swing capability also allows designers to buffer CMOS ADCs, DACs, ASICs, and other wide-output-swing devices in single-supply systems.

Applications

• Current sensing
• Barcode scanners
• PA control
• Battery-powered instrumentation
• Multipole filters
• Sensors
• ASIC input/output amplifiers
• Audio

Key features

• Low offset voltage: 500uV (max)
• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 300uA per amplifier
• Wide bandwidth: 8 MHz
• Slew rate: 5 V/µs
• Low distortion
• No phase reversal
• Low input current
• Unity-gain stable
• AEC-Q100 qualified
