HTCSEMIDatasheet (PDF)

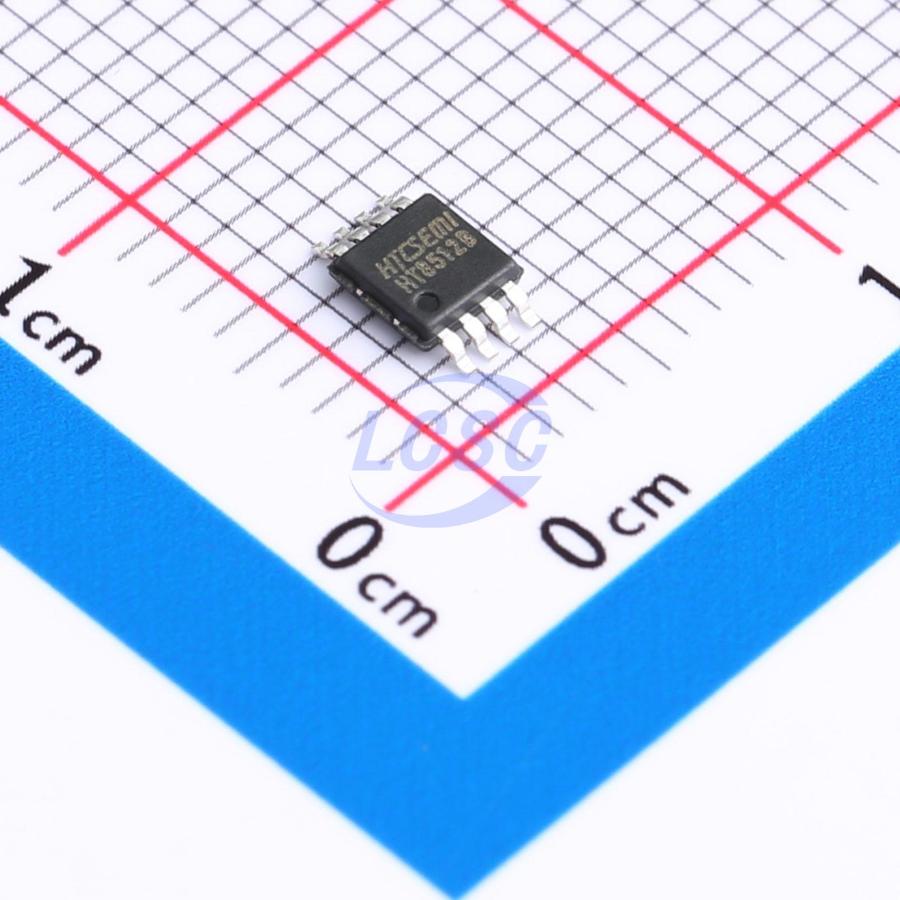

HT8512BRMZ
50mA 2 500uV 5V/us 110dB 100nA 6mA 15MHz MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
Low distortion audio operational amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT8512BRMZ
- Store part #
- C5143019
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
994 in stock
#C5143019
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.01 | ₹88.01 |
| 10+ | ₹69.33 | ₹693.30 |
| 30+ | ₹59.76 | ₹1,792.80 |
| 100+ | ₹50.42 | ₹5,042.00 |
1 × ₹88.01
₹88.01
excl. GST
₹103.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT8512BRMZ
₹88.01 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- -18V~-2V;2V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
HT8512B is the dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre-amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current, and further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the low voltage source.
Key features
- Operating Voltage (±2V ~ ±18V)
- Low Input Noise Voltage (0.8µVrms typ.)
- Wide Gain Bandwidth Product (15MHz typ.)
- Low Distortion (0.0005% typ.)
- Slew Rate (5V/µs typ.)
- Package Outline DIP8, SIP8, SOP8, MSOP8, WSOP8
- Bipolar Technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT33078ARMZ#C5143020HTCSEMI · MSOP-8 | HTCSEMI | MSOP-8 | 675 | ₹33.49 · 675 in stock | View |
 | HT4580ARMZ#C5241928HTCSEMI · MSOP-8 | HTCSEMI | MSOP-8 | On request | Price on request | Quote |
