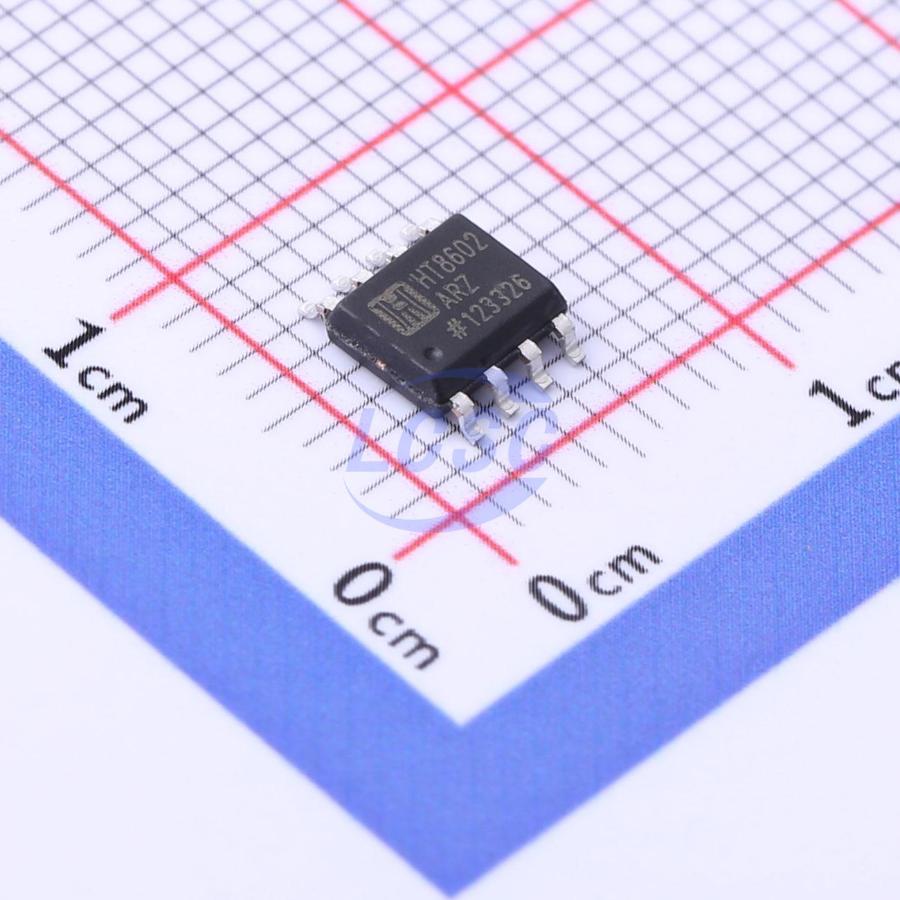

HT8602ARZ

HT8601, HT8602, and HT8604 are single-channel, dual-channel, and quad-channel, rail-to-rail input and output, single-supply amplifiers featuring ultralow offset voltage and wide signal bandwidth. These amplifiers employ a novel patented trimming technique that achieves excellent performance without laser trimming. All devices operate from a 3 V to 5 V single supply. The combination of low offset, ultralow input bias current, and high-speed characteristics makes these amplifiers suitable for a wide range of applications. Filters, integrators, diode amplifiers, shunt sensors, and high-impedance sensors can all benefit from this combination of features. Wide bandwidth and low distortion make them ideal for audio and other AC applications. For most cost-sensitive applications, the D grade offers the same AC performance at a lower price point, with reduced DC accuracy. These amplifiers also feature rail-to-rail input and output swing capability, enabling designers to buffer CMOS ADCs, DACs, ASICs, and other wide-output-swing devices in single-supply systems.

Applications

• Current sensing
• Barcode scanners
• PA control
• Battery-powered instrumentation
• Multi-pole filters
• Sensors
• ASIC input or output amplifiers
• Audio

Key features

• Low offset voltage: 500uV (max)
• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 750uA per amplifier
• Wide bandwidth: 8 MHz
• Slew rate: 5 V/µs
• Low distortion
• No phase reversal
• Low input current
• Unity-gain stable
• Automotive qualified
