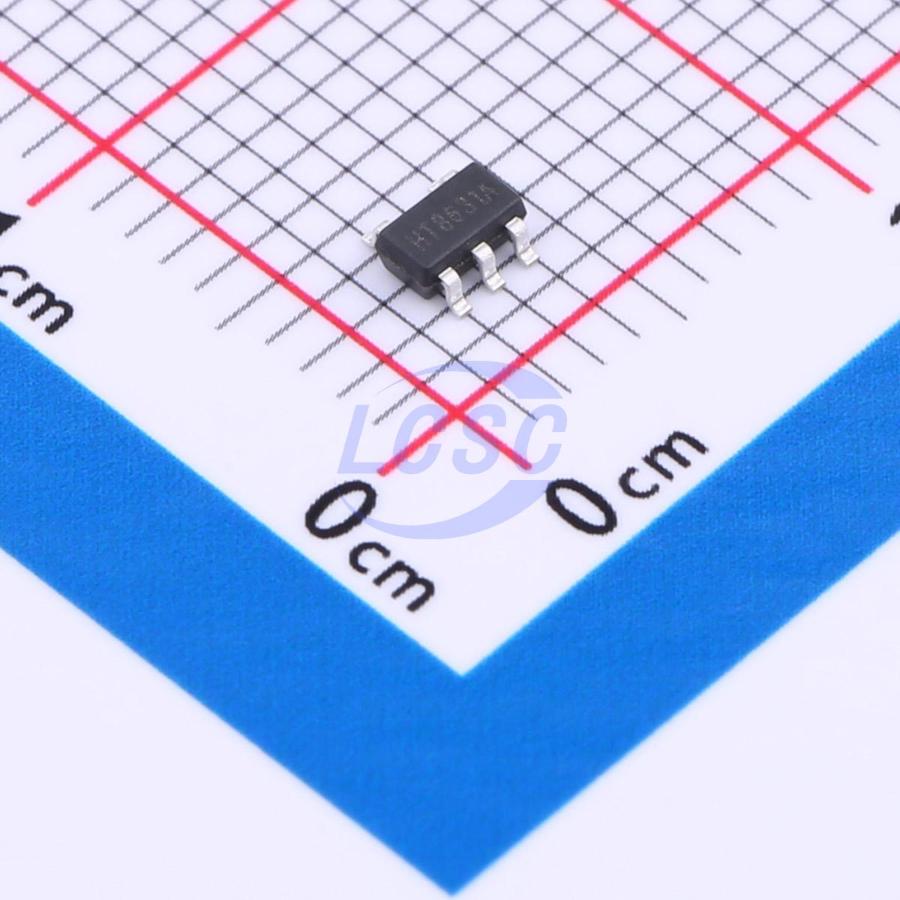

HT8631ARTZ

The HT86312 are CMOS op-amps with low offset, stable high frequency response, low power, low supply voltage, and rail-to-rail inputs and outputs. HT86312 have a high gain-bandwidth product of 6MHz, 3.7V/μs slew rate while consuming only 480μμ of supply current per amplifier. The maximum input offset voltage is 3mV for HT86312. Beyond the rail input and rail-to-rail output characteristics allow the full power-supply voltage to be used for signal range. The operating range is from 2.5V to 5.5V. This combination of features makes the HT8631/2 superior among rail-to-rail input/output CMOS op amps in its power class. It is specified over the extended industrial temperature rang -40°C to +125°C. The HT86312 can be used as cost-effective plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.

Applications

• Active Filters, ASIC Input or Output Amplifier
• Sensor Interface
• Smoke/Gas/Environment Sensors
• Portable Instruments and Mobile Device
• Audio Output
• PCMCIA Cards
• Battery or Solar Power Systems
• Medical Equipment
• Piezo Electrical Transducer Amplifier

Key features

• Stable 6MHz GBWP with Low I₀ of Only 480μμ Typical per Amplifier
• Offset Voltage: ±3mV Maximum
• High Slew Rate: 3.7V/μs
• Input Bias Current: 1pA Typical
• CMRR/PSRR: 100dB/100dB
• Settling time to 0.1% with 2V Step: 0.46us
• Beyond the Rails Input Common-Mode Range
• Output Swing to within 10mV Typical of each Rail
• No Phase Reversal for Overdriven Inputs
• Supply Voltage Range: 2.5V to 5.5V
• -40°C to 125°C Operation Range
• Green, Popular Type Package
