HTCSEMI

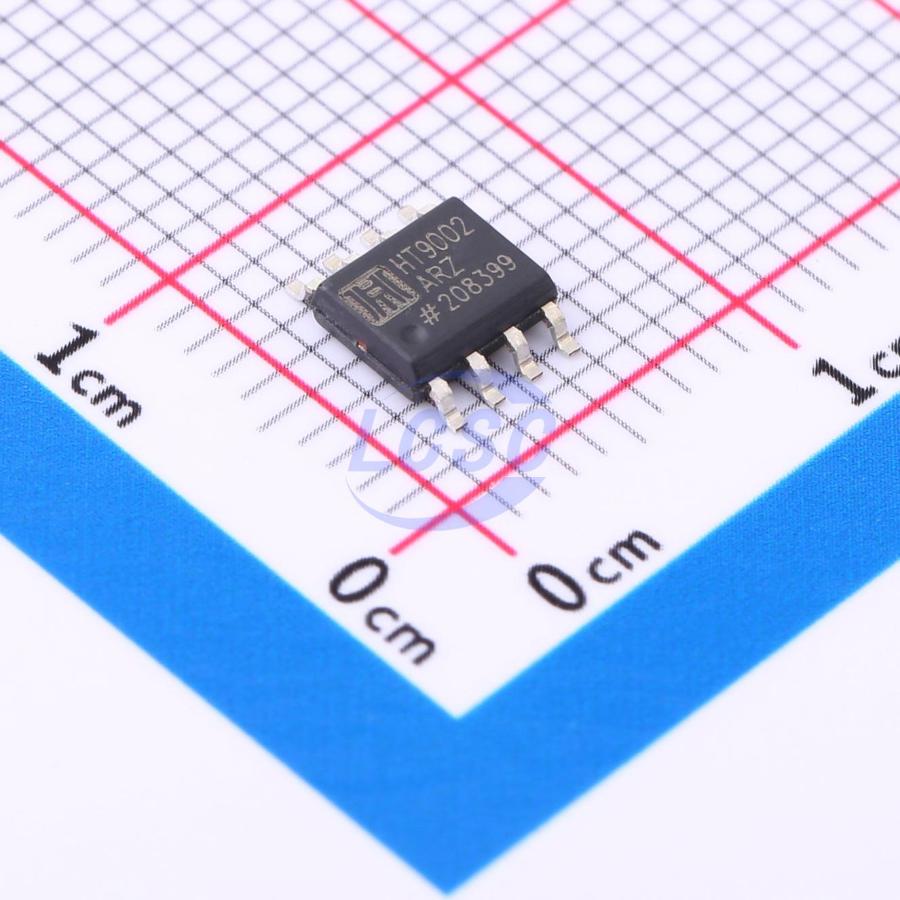

HT9002ARZ

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8

SOP-8RoHSActive

Low-power, RRIO, 1MHz operational amplifier

Manufacturer: HTCSEMI
Manufacturer part #: HT9002ARZ
Store part #: C5158902
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,945 in stock

#C5158902

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹22.03	₹110.15
50+	₹19.33	₹966.50
150+	₹18.16	₹2,724.00
1,000+	₹16.72	₹16,720.00
2,000+	₹16.07	₹32,140.00
5,000+	₹15.69	₹78,450.00

Quantity (min 5, multiples of 5)

5 × ₹22.03

₹110.15

excl. GST

₹129.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

HT9002ARZ

₹110.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 1.6mV
Slew Rate: 2V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 105dB
Input Offset Voltage Drift(Vos TC): 600nV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1MHz
Features: Enable/shutdown function;EMI filtering/RF suppression;Built-in compensation;ESD protection
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

The HT900x family includes single-channel (HT9001), dual-channel (HT9002), and quad-channel (HT9004) low-voltage (1.8V to 5.5V) op-amps with rail-to-rail input and output swing capability. These op-amps provide a cost-effective solution for space-constrained applications requiring low-voltage operation and high capacitive load drive — such as smoke detectors, wearable electronics, and small appliances. The HT900x family's capacitive load driver supports up to 500pF, while the resistive open-loop output impedance enables easier stabilization under higher capacitive loads. These op-amps are designed for low supply voltage operation (1.8V to 5.5V) with performance specifications similar to HT600x devices.

Applications

Sensor signal conditioning
Power supply modules
Active filters
Low-side current sensing
Smoke detectors
Motion detectors
Wearable devices
Large and small home appliances
EPOS
Barcode scanners
Personal electronics
HVAC
Motor control: AC induction
Single-pole low-pass filter

Key features

Scalable CMOS amplifier for cost-sensitive applications
Rail-to-rail input and output
Low input offset voltage: ±0.4mV
Unity-gain bandwidth: 1MHz
Low wideband noise: 27nV/√Hz
Low input bias current: 5pA
Low quiescent current: 60μA/channel
Unity-gain stable
Built-in RFI and EMI filter
Operates from supply voltages as low as 1.8V
Resistive open-loop output impedance for easier stabilization with higher capacitive loads
Operating temperature range: -40°C to 125°C
