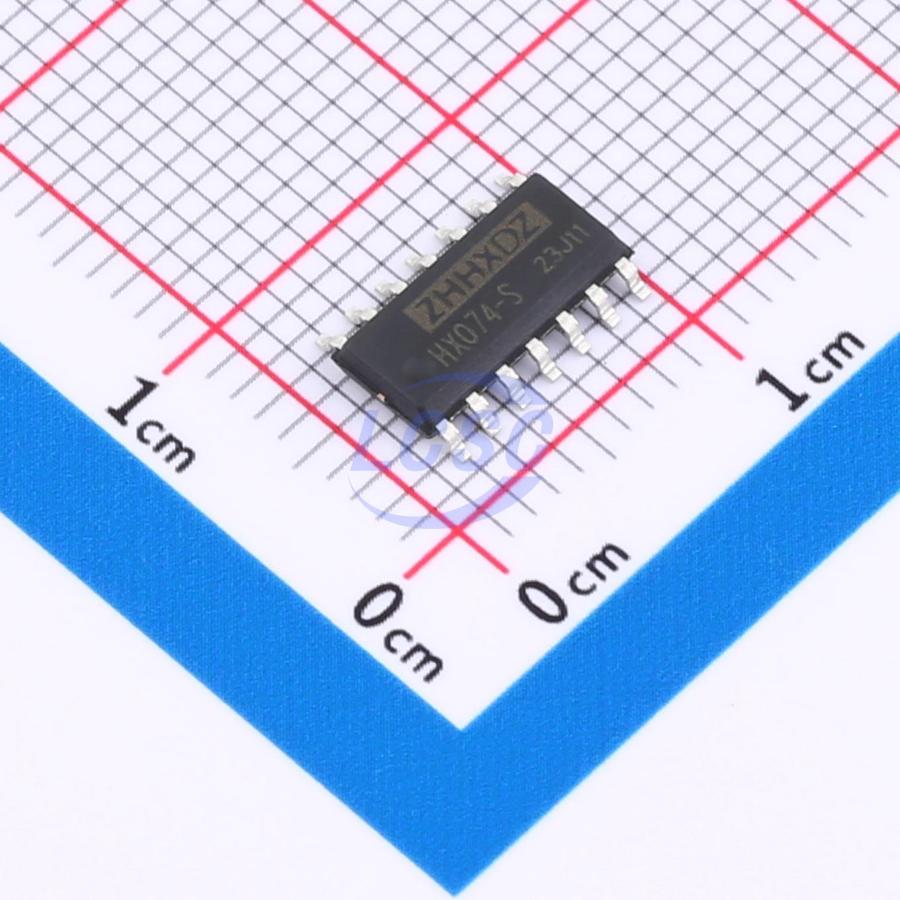

HX074-S

The HX074-S/HX074-P/HX074A-S/HX074A-P features four independent high gain operational amplifiers with internal frequency compensation. These four op-amps operate over a wide voltage range using either a single power supply or a split power supply. The device exhibits low power supply current drain, regardless of the power supply voltage, making it suitable for battery-operated applications. When your project requires a traditional op-amp function, you can simplify your design by utilizing a single +5V DC power supply commonly found in various digital systems or personal computer applications, eliminating the need for an additional 15V power supply solely for interface electronics. The HX074-S/HX074-P/HX074A-S/HX074A-P is a versatile and durable component capable of amplifying signals from various transducers, serving as a dc gain block, or performing any op-amp function.

Key features

• DIP-14
• Internally frequency compensated for unity gain
• Large DC voltage gain: 100dB
• Wide power supply range: 3V ~ 32V (or ±1.5V ~ ±16V)
• Input common-mode voltage range includes ground
• Large output voltage swing: 0V DC to VCC-1.5V DC
• Power drain suitable for battery operation
• Low input offset voltage and offset current
• Differential input voltage range equal to the power supply voltage
