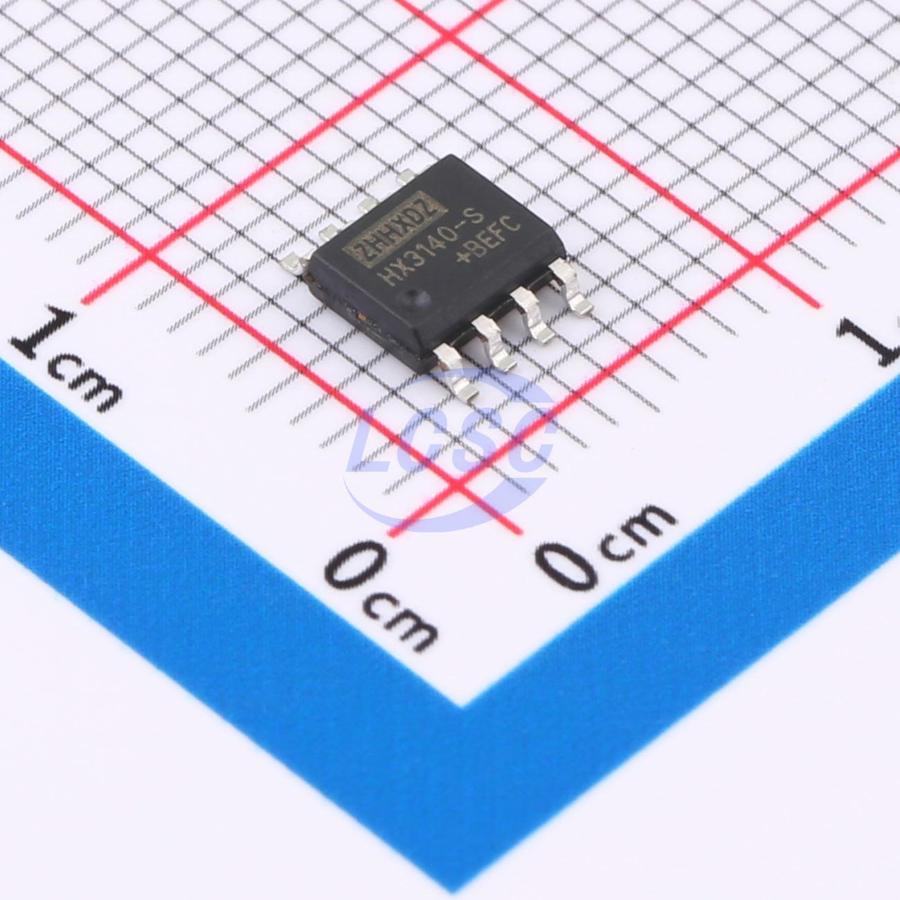

HX3140-S
45mA 1 3mV 9V/us 80dB 50pA 5mA 4.5MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- HX3140-S
- Store part #
- C49339820
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C49339820
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.66 | ₹40.66 |
| 10+ | ₹35.71 | ₹357.10 |
| 30+ | ₹33.55 | ₹1,006.50 |
| 100+ | ₹30.76 | ₹3,076.00 |
| 500+ | ₹29.69 | ₹14,845.00 |
| 1,000+ | ₹29.04 | ₹29,040.00 |
1 × ₹40.66
₹40.66
excl. GST
₹47.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX3140-S
₹40.66 for 1 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 30pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 4.5MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
HX3140-S/HX3140-P is a single-channel integrated op-amp circuit combining the advantages of high-voltage PMOS and high-voltage bipolar transistors, integrated on a single chip. The device is available in SOP8 or DIP8 package options.
Applications
- Current-to-voltage converter circuit
- DC inverter welder
- ICL7107 digital voltmeter
Key features
- Input stage integrates MOSFET (PMOS) with gate protection
- Extremely high input impedance
- Extremely low input current
- High-speed performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CA3130AMZ96-HX#C50345547ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 846 | ₹113.30 · 846 in stock | View | |
 | CA3130MZ96-HX#C50345548ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 847 | ₹113.30 · 847 in stock | View |
 | CA3140AMZ96-HX#C53284311ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 728 | ₹55.12 · 728 in stock | View |
