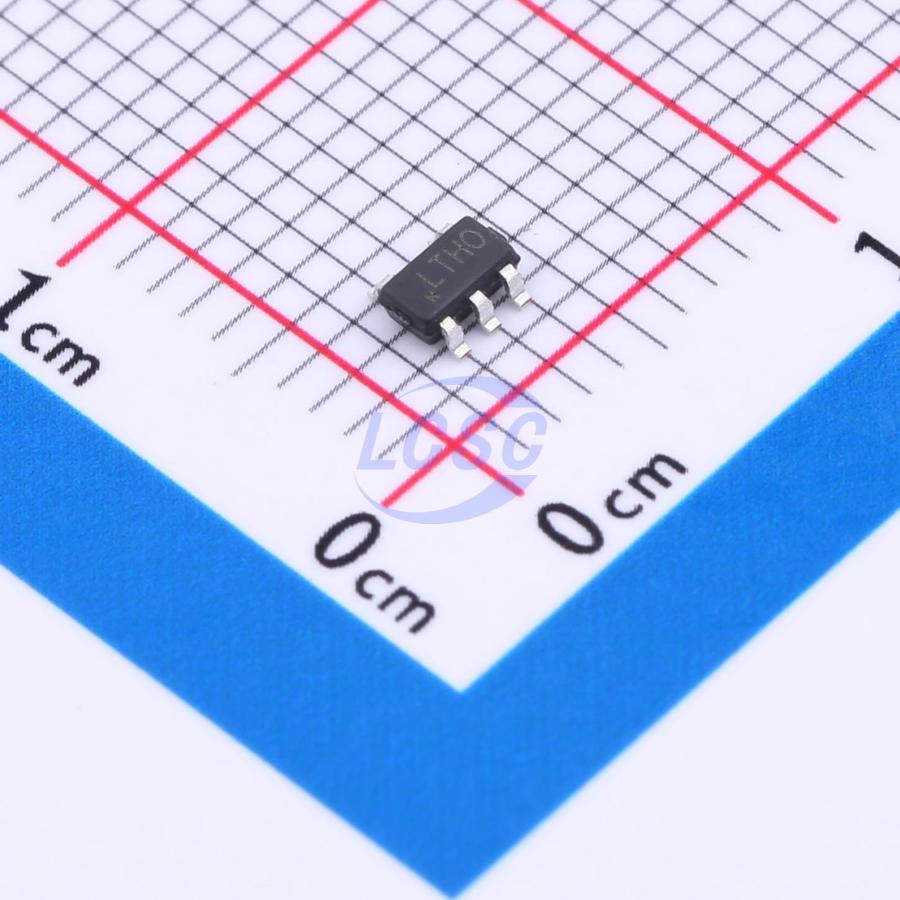

HX4054D
Battery Charging IC Lithium Battery SOT-23-5
Miniature linear battery management chip with thermal regulation function
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX4054D
- Store part #
- C2984963
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C2984963
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.62 | ₹462.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.06 | ₹18,360.00 |
| 9,000+ | ₹2.87 | ₹25,830.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX4054D
₹57.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The HX4054D is a complete single-chip linear power management IC for lithium-ion battery constant-current/constant-voltage charging. Its slim profile and compact package make it ideal for portable applications. Notably, the HX4054D is specifically designed to comply with USB power supply specifications. Thanks to the internal MOSFET architecture, no external sense resistors or blocking diodes are required. During high power operation or elevated ambient temperatures, thermal feedback circuitry automatically reduces the charge current to limit die temperature.
Applications
- Mobile phones, PDAs, MP3 players
- Bluetooth applications
Key features
- Programmable charge current up to 600mA
- No external MOSFET, sense resistor, or blocking diode required
- Compact form factor for complete linear charge management of Li-ion batteries
- Constant-current/constant-voltage operation with thermal regulation for maximum charge efficiency without risk of overheating
- Single-cell Li-ion battery management via USB interface
- Preset charge voltage: 4.2V ±1%
- Charge current output monitoring
- Charge status indication
- 1/10 charge current termination
- 25μA supply current in shutdown mode
- 2.9V trickle charge threshold voltage
- Soft-start to limit inrush current
- Reverse battery protection
- ESD (HBM) >7KV
- Charge current monitoring
- Input undervoltage lockout
- Automatic recharge
- Charge complete and charge initiation status flags
