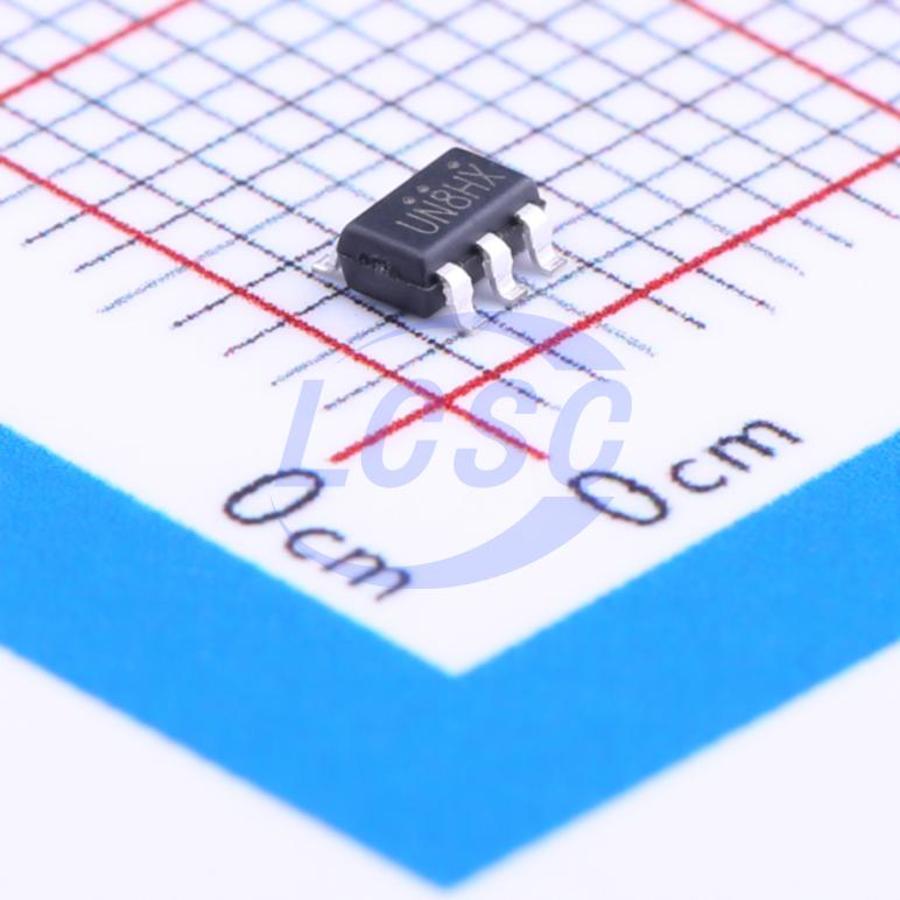

HX6001-NEC
Lithium Battery 700mA SOT-23-5 Battery Management
Standalone Linear Li-lon Battery Charger with Thermal Regulation
- Manufacturer
- HEXIN
- Manufacturer part #
- HX6001-NEC
- Store part #
- C172356
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C172356
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.54 | ₹47.70 |
| 50+ | ₹7.67 | ₹383.50 |
| 150+ | ₹6.73 | ₹1,009.50 |
| 500+ | ₹6.03 | ₹3,015.00 |
| 3,000+ | ₹5.47 | ₹16,410.00 |
| 6,000+ | ₹5.19 | ₹31,140.00 |
5 × ₹9.54
₹47.70
excl. GST
₹56.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX6001-NEC
₹47.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 48uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current
- The Chip Type
- Charging IC
- Charge Current - Max
- 700mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The HX6001 is a complete constant-current/ constant-voltage linear charger for single cell lithium-ion batteries. Its package and low external component count make the HX6001 ideally suited for portable applications. Furthermore, the HX6001 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The HX6001 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. The HX6001 converters are available in the industry standard SOT-23-5L power packages (or upon request).
Applications
- Charger for Li-Ion Coin Cell Batteries
- Portable MP3 Players, Wireless Headsets
- Bluetooth Applications
- Multifunction Wristwatches
Key features
- Programmable Charge Current up to 700mA
- No MOSFET, Sense Resistor or Blocking Diode Required
- Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate
- Charges Single Cell Li-Ion Batteries Directly from USB Port
- Preset 4.2V Charge Voltage with 1% Accuracy
- Automatic Recharge
- 2.9V Trickle Charge Threshold
- Available in 5-Lead SOT-23 Package
