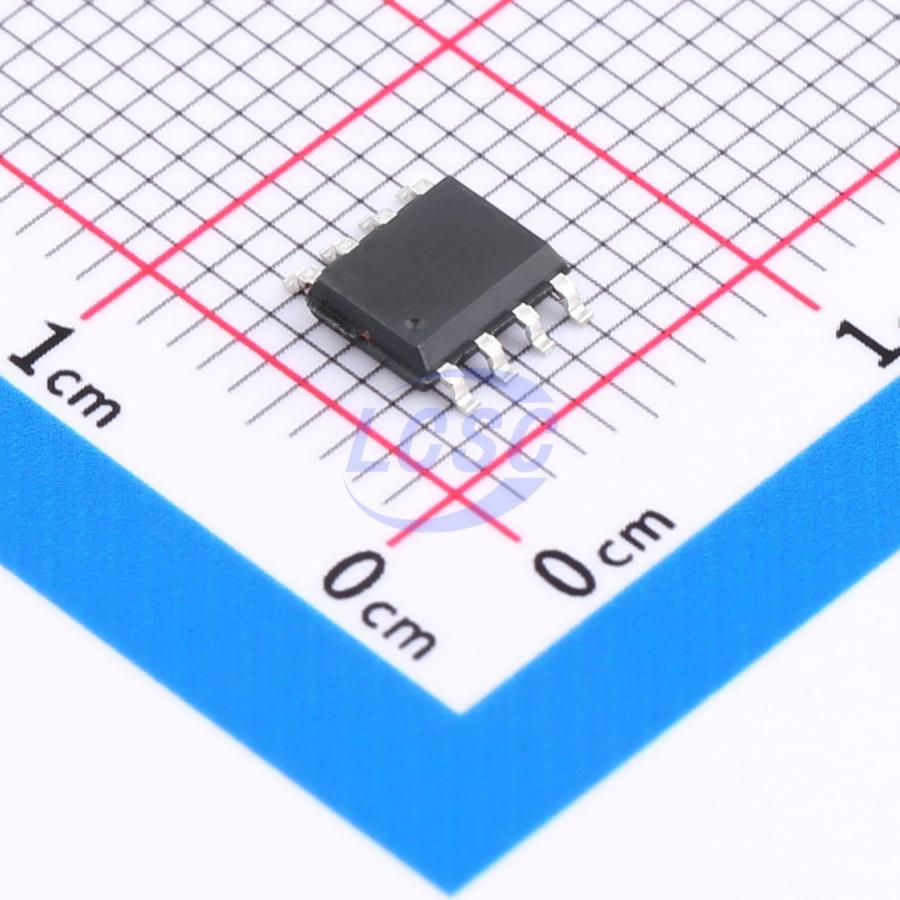

HX6610S
Battery Charging IC Lithium Battery ESOP-8
Single-cell lithium-ion battery charger
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX6610S
- Store part #
- C296208
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,965 in stock
#C296208
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.29 | ₹86.45 |
| 50+ | ₹13.83 | ₹691.50 |
| 150+ | ₹12.09 | ₹1,813.50 |
| 500+ | ₹10.81 | ₹5,405.00 |
| 2,500+ | ₹8.76 | ₹21,900.00 |
| 4,000+ | ₹8.24 | ₹32,960.00 |
5 × ₹17.29
₹86.45
excl. GST
₹102.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HX6610S
₹86.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~7V
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Overview
HX6610S is a complete single-cell lithium-ion battery charger with battery polarity reversal protection, employing constant-current/constant-voltage linear control. The minimal external component count makes the HX6610S an ideal choice for portable applications. The HX6610S is compatible with both USB power supplies and adapter power sources. The internal PMOSFET architecture combined with an anti-backflow circuit eliminates the need for external sense resistors and isolation diodes. Thermal feedback automatically adjusts the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. Charge current is set externally via a single resistor. When the battery voltage reaches 4.22V (typical), the charge current drops to 1/10 of the programmed value and the HX6610S automatically terminates charging. When the input voltage (AC adapter or USB power supply) is removed, the HX6610S automatically enters a low-current state with battery leakage current below 3μA. Additional features of the HX6610S include a charge current monitor, undervoltage lockout, automatic recharge, and two status pins indicating end-of-charge and input voltage presence.
Key features
- Preset 4.22V ±1% charge voltage
- Externally adjustable charge voltage, up to near input voltage
- Trickle/constant current/constant voltage three-stage charging; externally adjustable charge current, up to 1A maximum
- Maximum input voltage: 7V
- Supports charging of 0V batteries
- Standby current less than 1μA
- Short-circuit protection
- OVP protection: stops charging when input exceeds 6.2V
- BAT-VDD reverse current blocking
- Battery reverse polarity protection to prevent chip damage from reversed battery connections
- Intelligent thermal regulation: charge current decreases as temperature rises, delivering maximum charge current without triggering overtemperature protection
- Soft-start limits inrush current
- Direct single-cell Li-ion battery charging from USB port
- Automatic recharge
- Supports 1-LED and 2-LED modes
- Highly integrated with minimal external components
- Available in ESOP-8 (HX6610S) and DIP-8 (HX6610D) packages
