HANSCHIP semiconductorDatasheet (PDF)

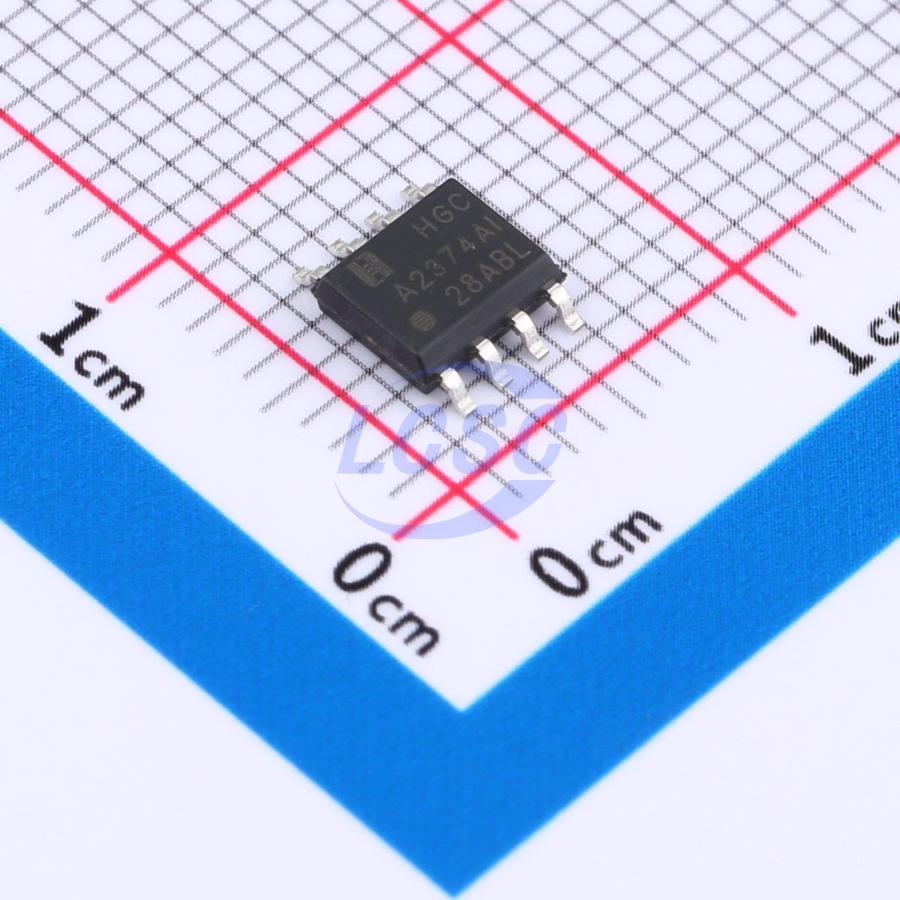

HXA2374AIDRG
1mV 5V/us 90dB 0.5pA 585uA 6.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
6.5MHz, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HXA2374AIDRG
- Store part #
- C5145352
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C5145352
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.11 | ₹120.55 |
| 50+ | ₹21.15 | ₹1,057.50 |
| 150+ | ₹19.90 | ₹2,985.00 |
| 500+ | ₹18.32 | ₹9,160.00 |
| 2,500+ | ₹16.78 | ₹41,950.00 |
| 5,000+ | ₹16.35 | ₹81,750.00 |
5 × ₹24.11
₹120.55
excl. GST
₹142.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HXA2374AIDRG
₹120.55 for 5 + GST
Specifications
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 0.5pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 585uA
- Gain Bandwidth Product
- 6.5MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 15nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.15V;1.15V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
The HXA373A and HXA373 families of operational amplifiers are low power and low cost with excellent bandwidth (6.5MHz) and slew rate (5V/μs). The input range extends 200mV beyond the rails and the output range is within 25mV of the rails. Their speed/power ratio and small size make them ideal for portable and battery- powered applications. The HXA373A family includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1μA. The HXA373A and HXA373 families of operational amplifiers are specified for single or dual power supplies of +2.7V to +5.5V with operation from +2.3V to +5.5V. All models are specified for -40°C to +125°C.
Applications
- Portable Equipment
- Battery- Powered Devices
- Active Filters
- Driving A/D Converters
Key features
- LOW OFFSET: 5mV (max)
- LOW IB: 10pA (max)
- HIGH BANDWIDTH: 6.5MHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- SINGLE SUPPLY: +2.3V to +5.5V
- SHUTDOWN: HXAx373
- SPECIFIED UP TO +125°C
- MicroSIZE PACKAGES: SOT-23-5, SOT-23-6, and SOP-8
