HANSCHIP semiconductorDatasheet (PDF)

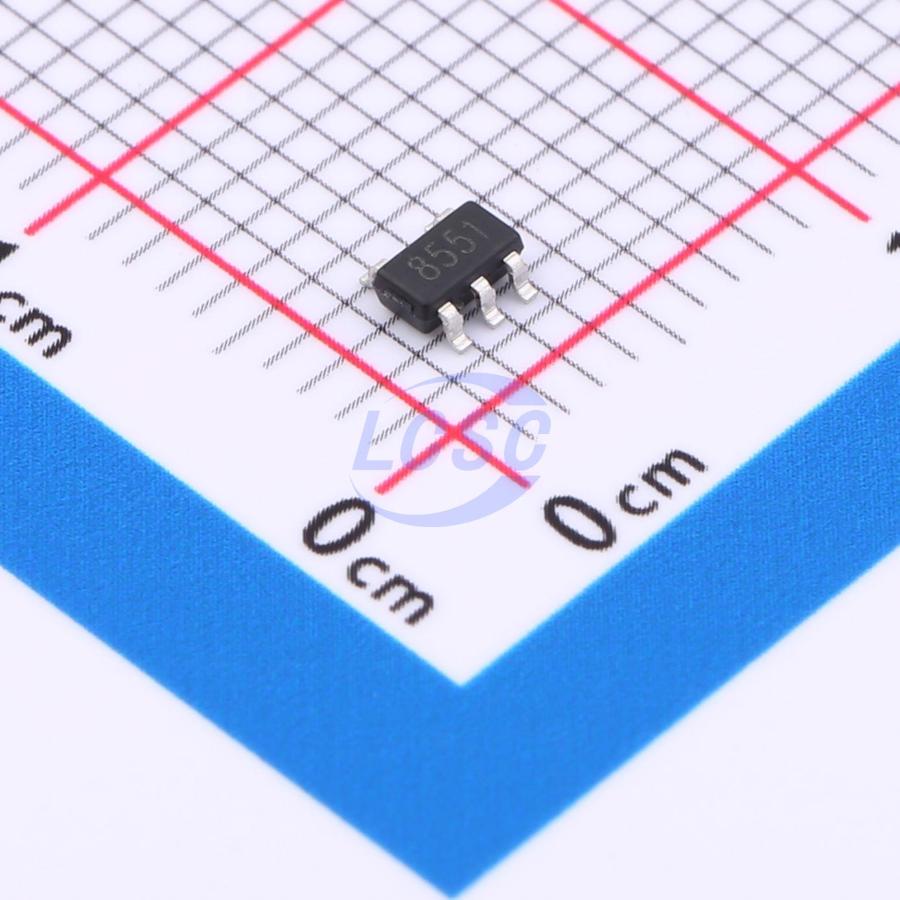

HXV8551AIDBVRG
65mA 30uV 0.95V/us 110dB 20pA 180uA 1.8MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HXV8551AIDBVRG
- Store part #
- C5145348
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C5145348
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.09 | ₹175.45 |
| 50+ | ₹30.68 | ₹1,534.00 |
| 150+ | ₹28.79 | ₹4,318.50 |
| 500+ | ₹25.22 | ₹12,610.00 |
| 3,000+ | ₹24.16 | ₹72,480.00 |
| 6,000+ | ₹23.54 | ₹1,41,240.00 |
5 × ₹35.09
₹175.45
excl. GST
₹207.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HXV8551AIDBVRG
₹175.45 for 5 + GST
Specifications
- Output Current
- 65mA
- Vos - Input Offset Voltage
- 30uV
- Slew Rate
- 0.95V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 180uA
- Gain Bandwidth Product
- 1.8MHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The HX855XA series amplifiers are single/dual/quad-supply, micropower, zero-drift CMOS op-amps offering 1.8MHz bandwidth, rail-to-rail input and output, and 1.8V to 5.5V single-supply operation. The HX855X employs chopper stabilization technology to deliver ultralow offset voltage (maximum less than 30µV) and near-zero drift over the full temperature range. With a low quiescent supply current of 180µA per amplifier and an extremely low input bias current of 20pA, these devices are ideal for low-offset, low-power, and high-impedance applications. The HX855X provides excellent common-mode rejection ratio without the crossover distortion associated with conventional complementary input stages. This design delivers superior performance when driving ADCs without degrading differential linearity. The series operates over an extended temperature range of -40°C to +85°C, providing additional design flexibility.
Applications
- Sensor applications
- Temperature measurement
- Electronic scales
- Handheld test equipment
- Battery-powered instruments
Key features
- Single-supply operating range: +1.8V ~ +5.5V
- Rail-to-rail input/output
- Gain bandwidth product: 1.8MHz (typical @ 25°C)
- Low input bias current: 20pA (typical @ 25°C)
- Low offset voltage: 30µV (maximum @ 25°C)
- Zero drift: 0.01µV/°C (typical)
- Quiescent current: 180µA per amplifier (typical)
- Operating temperature: -40°C ~ +85°C
- Integrated RF EMI filter
- Compact package
