HYCONDatasheet (PDF)

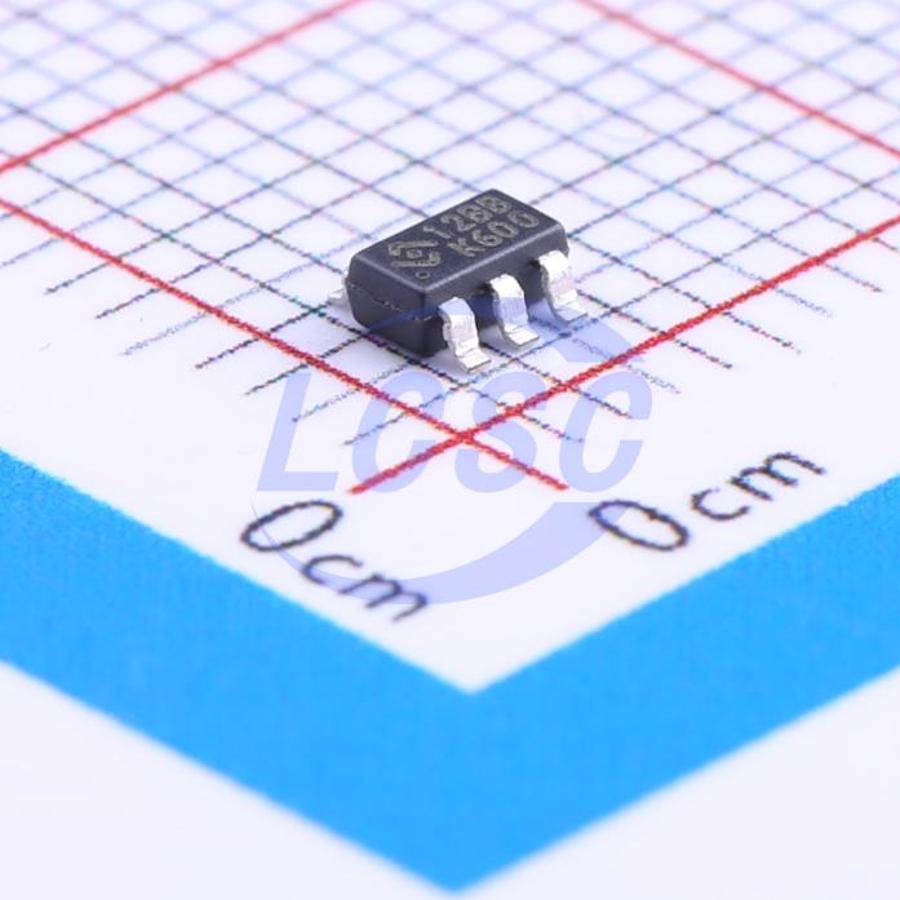

HY2112-BB
LiFePO4 Battery SOT-23-6 Battery Management
SOT-23-6RoHSActive
1-Cell LiFePO4 Battery Packs Protection ICs
- Manufacturer
- HYCON
- Manufacturer part #
- HY2112-BB
- Store part #
- C161942
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,935 in stock
#C161942
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.24 | ₹91.20 |
| 50+ | ₹15.14 | ₹757.00 |
| 150+ | ₹13.59 | ₹2,038.50 |
| 500+ | ₹12.42 | ₹6,210.00 |
| 3,000+ | ₹11.48 | ₹34,440.00 |
| 6,000+ | ₹11.02 | ₹66,120.00 |
5 × ₹18.24
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2112-BB
₹91.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- LiFePO4 Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
The series of HY2112 ICs is best created for single-cell LiFePO4 rechargeable battery protection and it also comprises high-accuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable LiFePO4 battery packs against the problems of overcharge, overdischarge and overcurrent.
Applications
- 1-cell LiFePO4 rechargeable battery packs
Key features
- High-accuracy voltage detection circuit
- Overcharge detection voltage 3.600 to 4.000V Accuracy: ±25mV
- Overcharge release voltage 3.400 to 4.000V Accuracy: ±50mV
- Overdischarge detection voltage 1.8 to 2.2V Accuracy: ±50mV
- Overdischarge release voltage 1.8 to 2.4V Accuracy: ±50mV
- Discharge overcurrent detection voltage (by option) Accuracy: ±15mV
- Charge overcurrent detection voltage (by option)
- Short-circuiting detection voltage 0.85V (fixed) Accuracy ±300mV
