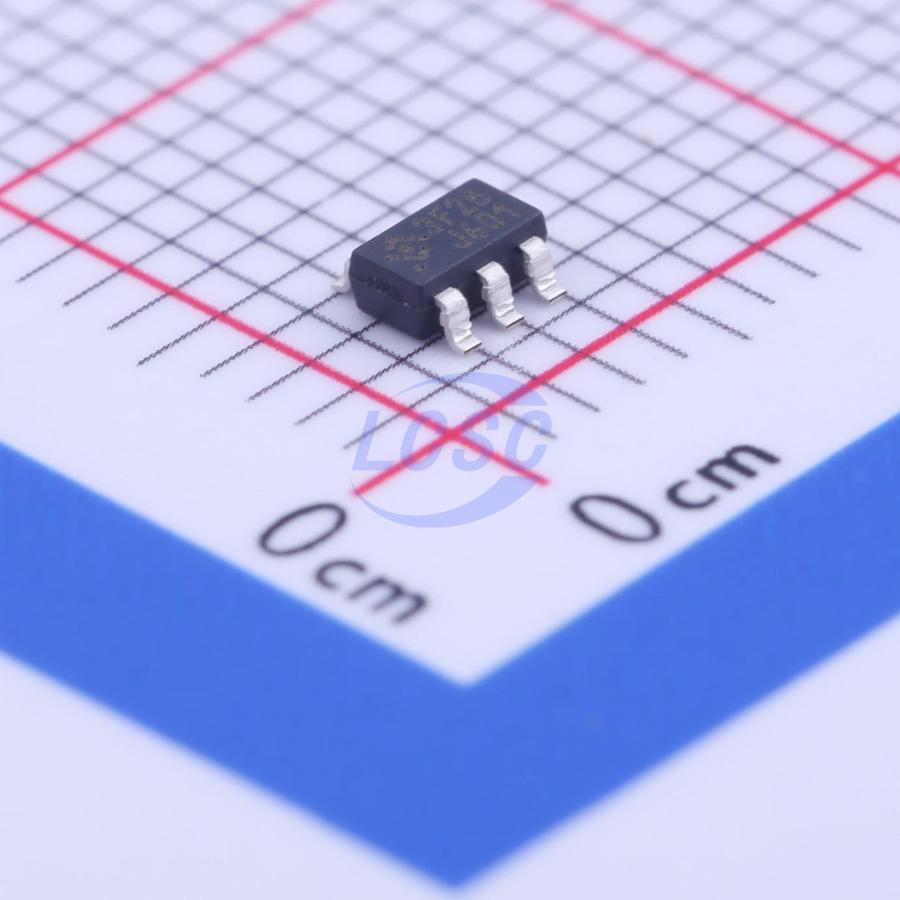

HY2113-FB2B
Lithium Battery 200uA SOT-23-6 Battery Management
SOT-23-6RoHSActive
1-Cell Lithium-ion/Lithium Polymer Battery Packs Protection ICs
- Manufacturer
- HYCON
- Manufacturer part #
- HY2113-FB2B
- Store part #
- C168768
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,280 in stock
#C168768
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.62 | ₹73.10 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.20 | ₹1,530.00 |
| 500+ | ₹9.09 | ₹4,545.00 |
| 3,000+ | ₹8.21 | ₹24,630.00 |
| 6,000+ | ₹7.76 | ₹46,560.00 |
| 9,000+ | ₹7.67 | ₹69,030.00 |
| 21,000+ | ₹7.60 | ₹1,59,600.00 |
5 × ₹14.62
₹73.10
excl. GST
₹86.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2113-FB2B
₹73.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The series of HY2113 ICs is best created for single-cell lithium-ion/lithium polymer rechargeable battery protection and it also comprises high-accuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable lithium-ion/lithium polymer battery packs against the problems of overcharge, overdischarge and overcurrent.
Applications
- 1-cell lithium-ion rechargeable battery packs
- 1-cell lithium polymer rechargeable battery packs
Key features
- High-accuracy voltage detection circuit
- Overcharge detection voltage 4.000 to 4.500V Accuracy: ±25mV
- Overcharge release voltage 3.800 to 4.500V Accuracy: ±50mV
- Overdischarge detection voltage 2.00 to 3.10V Accuracy: ±50mV
- Overdischarge release voltage 2.00 to 3.40V Accuracy: ±50mV
- Discharge overcurrent detection voltage 25 to 250mV Accuracy: ±15mV
- Charge overcurrent detection voltage (by option)
- Short-circuiting detection voltage 0.85V(fixed) Accuracy: ±0.3V
- Delay times are generated by an internal circuit (external capacitors are unnecessary).
- Power-down function “Yes” / “No” are selectable (See Model List).
- Auto overdischarge recovery function “Yes” / “No” are selectable (See Model List).
- Low current consumption (Products with Power-down Function)
- Operation mode 3.0μA typ., 6.0μA max. (VDD = 3.9V)
- Ultra low power-down current at 0.1μA max. (VDD = 2.0V)
- High-withstanding-voltage device is used for charger connection pi (CS pin and OC pin: Absolute maximum rating = 20V)
- 0 V battery charge function “available” / “unavailable” are selectable (See Model List).
- Wide operation temperature range -40°C to +85°C
- Small package DFN-1.8*2.0 -6L & SOT-23-6
- The HY2113 series are Halogen-free, green package
