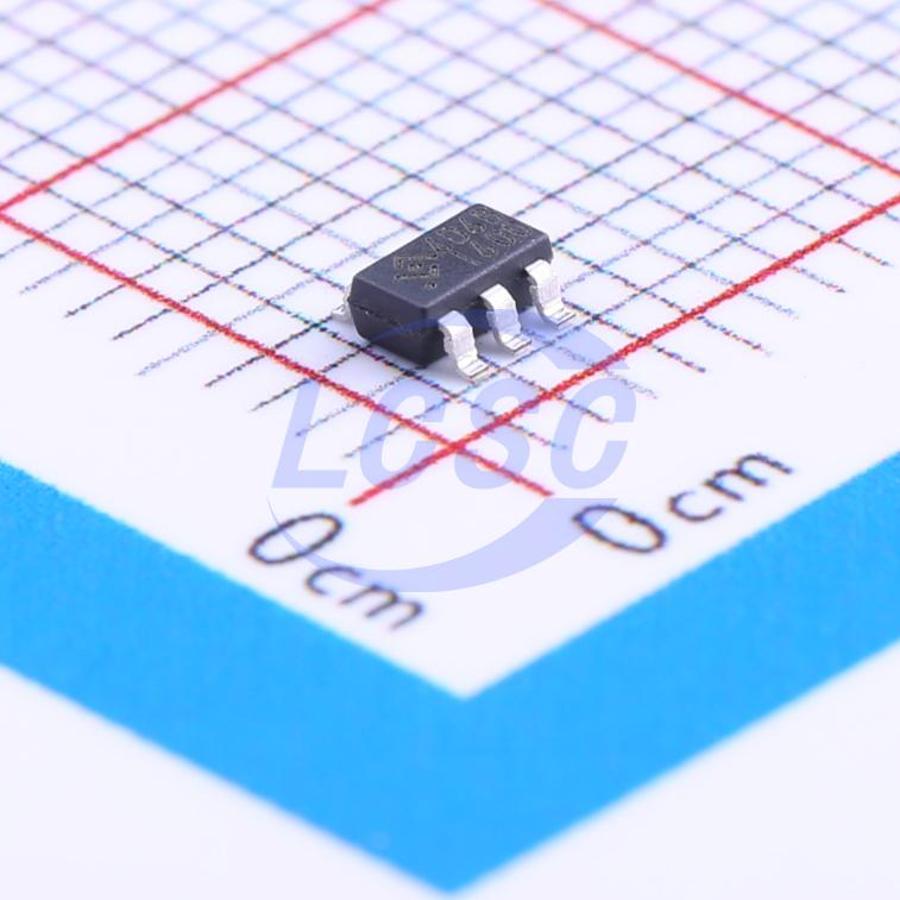

Battery Protection IC Lithium-ion/Polymer SOT-23-6
SOT-23-6RoHSActive
Single-cell lithium-ion/lithium-polymer battery protection IC
- Manufacturer
- HYCON
- Manufacturer part #
- HY2116-DB6B
- Store part #
- C168774
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C168774
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.98 | ₹89.90 |
| 50+ | ₹14.22 | ₹711.00 |
| 150+ | ₹12.34 | ₹1,851.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 3,000+ | ₹9.82 | ₹29,460.00 |
| 6,000+ | ₹9.25 | ₹55,500.00 |
5 × ₹17.98
₹89.90
excl. GST
₹106.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HY2116-DB6B
₹89.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 1.5V~8V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The HY2116 series IC incorporates a high-precision voltage detection circuit and delay circuit, serving as a protection IC for single-cell lithium-ion/lithium-polymer rechargeable batteries. It provides protection against overcharge, overdischarge, and overcurrent for single-cell lithium-ion/lithium-polymer rechargeable batteries.
Applications
- Single-cell Li-ion rechargeable battery pack
- Single-cell LiPo rechargeable battery pack
Key features
- High-precision voltage detection circuit
- Overcharge detection voltage 4.000~4.500V, accuracy ±25mV
- Overcharge release voltage 3.800~4.500V, accuracy ±50mV
- Over-discharge detection voltage 2.00~3.10V, accuracy ±50mV
- Over-discharge release voltage 2.00~3.40V, accuracy ±50mV
- Discharge overcurrent detection voltage 25~250mV, accuracy ±10mV
- Charge overcurrent detection voltage (selectable)
- Load short-circuit detection voltage 0.85V (fixed), accuracy ±0.3V
- All delay times set by internal circuit (no external capacitor required)
- Sleep function: selectable "enabled" or "disabled"
- Over-discharge auto-recovery function: selectable "enabled" or "disabled"
- Low current consumption (models with sleep function)
- Operating mode: typical 3.0μA, maximum 6.0μA (VDD = 3.9V)
- Sleep mode: maximum 0.1μA (VDD = 2.0V)
- High voltage-rated design for charger-side terminals (CS and OC terminals, absolute maximum rating 20V)
- 0V battery charging function
- Wide operating temperature range: -40°C~+85°C
- Compact packages: DFN-1.8×2.0-6L & SOT-23-6
- Halogen-free, RoHS-compliant product
