IBS62220000QN24R00

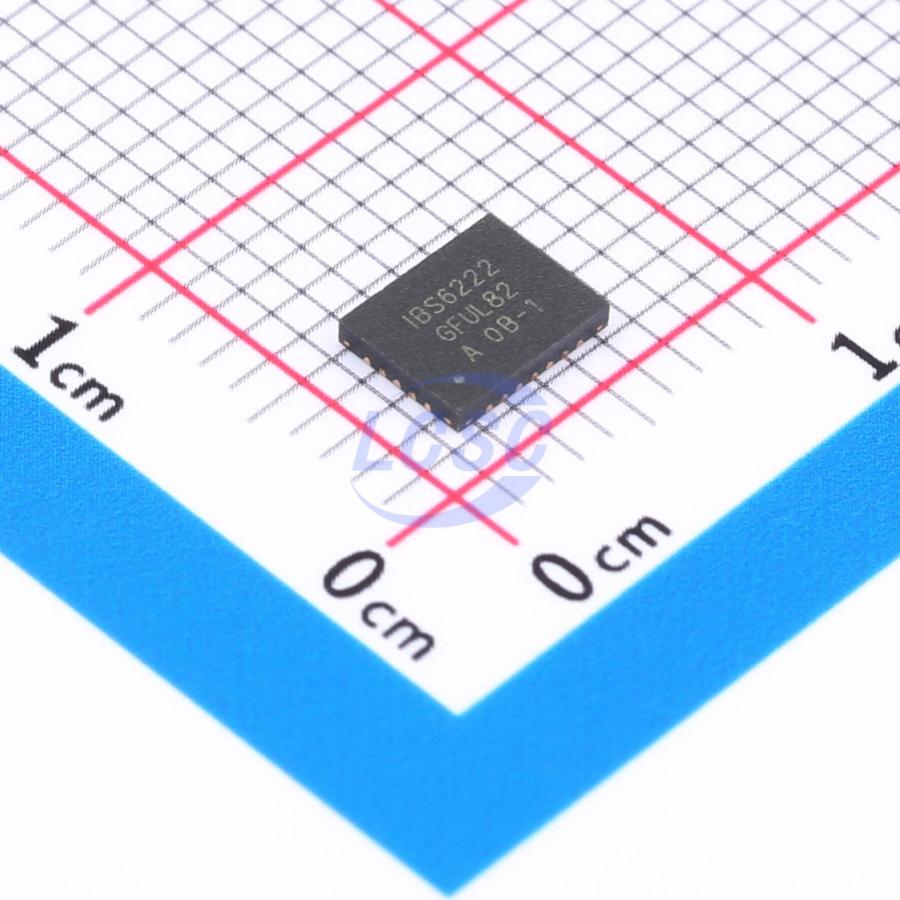

IBS6222 is a differential line driver amplifier based on current feedback architecture, primarily designed for wideband, high-speed, and power line communication line driving applications. The unique design architecture of IBS6222 delivers excellent power consumption performance. Through BIAS and IADJ pins, quiescent current can be adjusted over a wide range from 0.7mA to 36mA, accommodating various load conditions while maintaining good linearity. IBS6222 features a wide supply voltage design, supporting a supply range of 8VDC to 34VDC. Built-in sensitive overvoltage and over-temperature protection modules ensure stable and reliable performance under various operating conditions, enabling superior performance in power line carrier applications. The device is offered in three package options: QFN24 with a body size of 5mm×4mm; QFN16 with a body size of 4mm×4mm; and QFN16 with a body size of 3mm×3mm.

Applications

• Broadband power line communication
• 8～34V operating voltage range, differential broadband PLC line driver

Key features

• Wide supply range: 8V~34V (36V triggers OVP)
• Integrated internal common-mode bias circuit
• High voltage tolerance up to 52V (guaranteed under specified test conditions)
• High output current: 350mA (Vdc = 12V, 5Ω load)
• Maximum output current: >800mA (5Ω load, 1MHz)
• Low power consumption: Standard operating mode: 23mA (recommended for HPLC applications); Low-power shutdown mode: 0.7mA; Adjustable quiescent current: 0.4mA to 36mA
• Low distortion: HD2: –89dBc (1MHz, 50Ω); HD3: –90dBc (1MHz, 50Ω)
• High bandwidth: fully meets broadband power line communication requirements
• PSRR: 50dB (1MHz)
• Operating temperature: -40°C~+85°C
