IKSEMICONDatasheet (PDF)

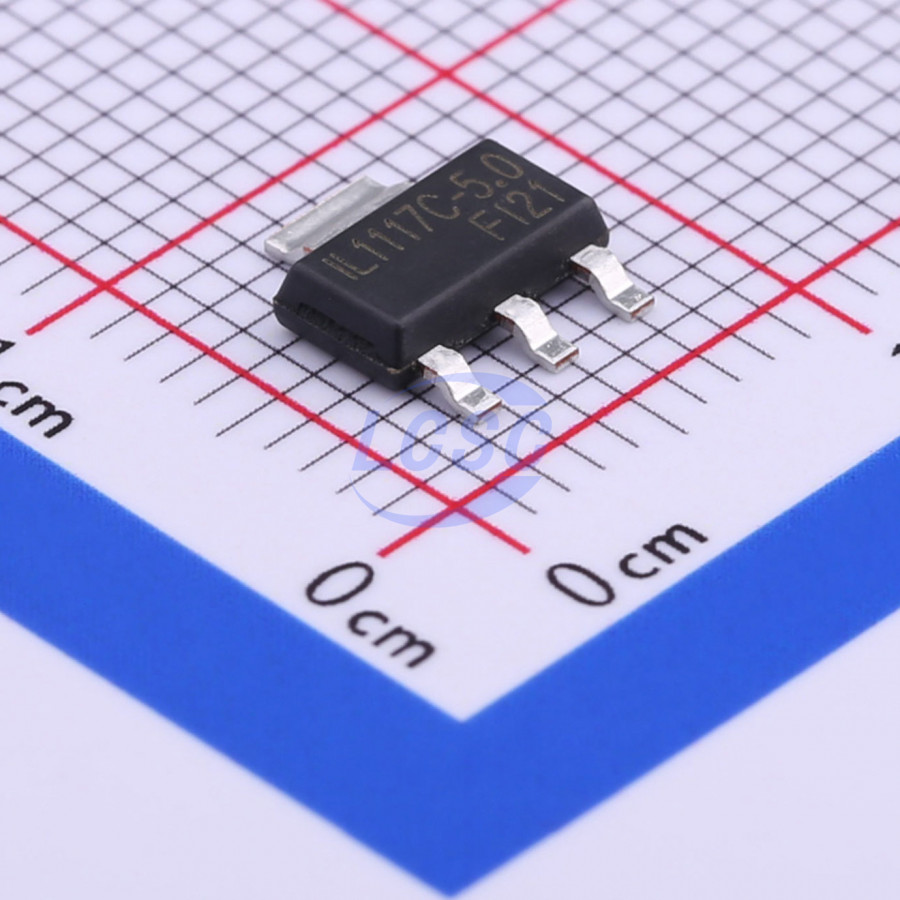

IL1117C-5.0
5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-4RoHSActive
Low Dropout Positive Voltage Regulator
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IL1117C-5.0
- Store part #
- C439982
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,895 in stock
#C439982
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.18 | ₹100.90 |
| 50+ | ₹16.14 | ₹807.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹12.61 | ₹6,305.00 |
| 2,500+ | ₹11.39 | ₹28,475.00 |
| 4,000+ | ₹10.80 | ₹43,200.00 |
5 × ₹20.18
₹100.90
excl. GST
₹119.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IL1117C-5.0
₹100.90 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5.2mA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
The IL1117C is a series of low dropout voltage regulators which can provide up to 1A of output current. The IL1117C is available in eight fixed voltage, 1.2, 1.25, 1.5, 1.8, 2.5, 2.85, 3.3 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/ output voltage to within ± 2%. Current limit is also trimmed to ensure specified output current and controlled short-circuit current. The IL1117C series is available in SOT-223, TO252, TO-220 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and Stability.
Applications
- Post Regulator for switching DC/DC Converter
- High Efficiency Linear Regulator
- Battery Chargers
- PC Add on Card
- Motherboard clock supplies
- LCD Monitor
- Set-top Box
Key features
- Dropout Voltage – 1.2V(Typ)
- Reference/Output Voltage Trimmed to ± 2%
- Maximum Input Voltage – 15V
- Adjustable Output Voltage or Fixed 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5V
- Line Regulation typically at 0.2% max
- Load Regulation typically at 0.4% max
- Current Limiting and Thermal Protection
- Standard 3-Pin Power Packages
- Operating Junction Temperature Range -40 to +125°C (for IL1117C-1.2V - 0 to +150°C)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-5.0#C6068482GOODWORK · SOT-223 | GOODWORK | SOT-223 | 56,480 | ₹7.86 · 56,480 in stock | View |
 | LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223 | UTC | SOT-223 | 1,550 | ₹10.11 · 1,550 in stock | View |
 | AMS1117-5.0#C347223UMW · SOT-223 | UMW | SOT-223 | 1,05,530 | ₹6.28 · 1,05,530 in stock | View |
 | AMS1117-5.0#C6187Advanced Monolithic Systems · SOT-223 | Advanced Monolithic Systems | SOT-223 | 48,575 | ₹33.96 · 48,575 in stock | View |
 | 1117-5#C5125089IDCHIP · SOT-223 | IDCHIP | SOT-223 | 1,860 | ₹9.16 · 1,860 in stock | View |
