InfineonDatasheet (PDF)

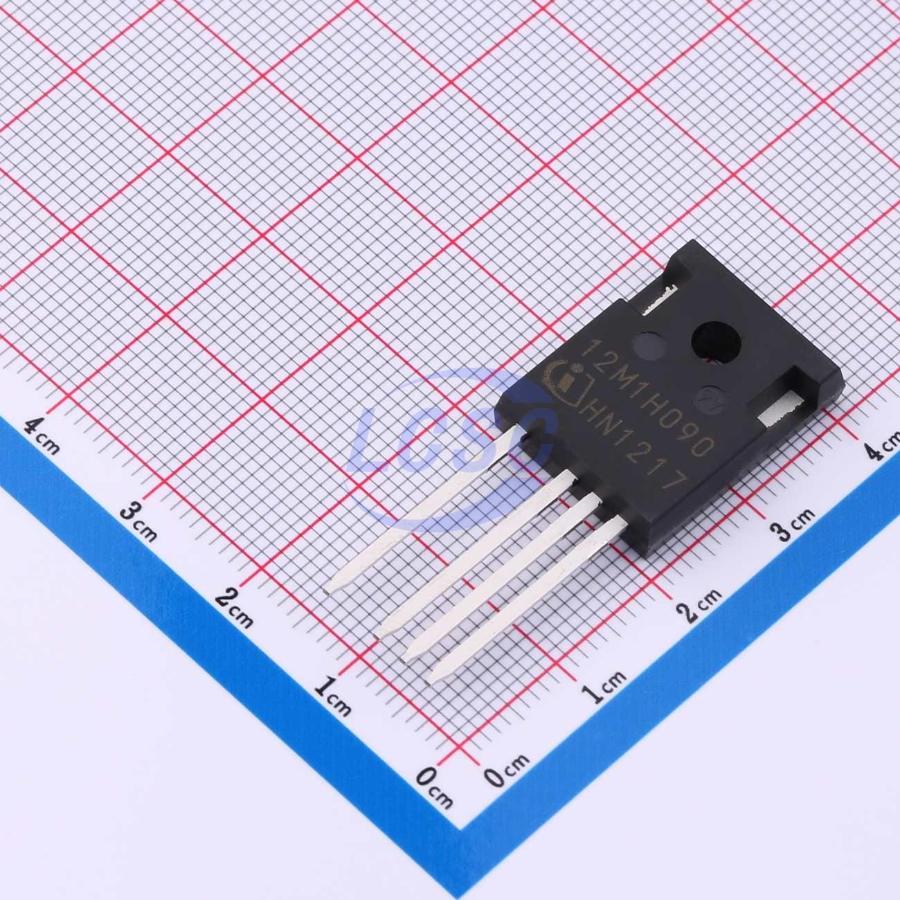

IMZ120R090M1H
N-Channel 1.2kV 26A 115W Through Hole TO-247-4
TO-247-4ROHS3 CompliantActive
CoolSiC 1200V SiC Trench MOSFET, Silicon Carbide MOSFET
- Manufacturer
- Infineon
- Manufacturer part #
- IMZ120R090M1H
- Store part #
- C536293
- Package / case
- TO-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C536293
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹892.19 | ₹892.19 |
| 10+ | ₹766.67 | ₹7,666.70 |
| 30+ | ₹690.13 | ₹20,703.90 |
| 90+ | ₹625.95 | ₹56,335.50 |
1 × ₹892.19
₹892.19
excl. GST
₹1,052.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IMZ120R090M1H
₹892.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 26A
- Output Capacitance(Coss)
- 39pF
- Ciss-Input Capacitance
- 707pF
- Pd - Power Dissipation
- 115W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 90mΩ@18V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC
- Gate Threshold Voltage (Vgs(th))
- 5.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.96 g
Overview
Applications
- Energy generation
- Solar string inverter and solar optimizer
- Industrial power supplies
- Industrial UPS
- Industrial SMPS
- Infrastructure - Charge
- Charger
Key features
- Very low switching losses
- Threshold-free on state characteristic
- Benchmark gate threshold voltage, VGS(th) = 4.5V
- 0V turn-off gate voltage for easy and simple gate drive
- Fully controllable dV/dt
- Robust body diode for hard commutation
- Temperature independent turn-off switching losses
- Sense pin for optimized switching performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT36N1200AKZ#C47326415HTCSEMI · TO-247-4L | HTCSEMI | TO-247-4L | 13 | ₹445.73 · 13 in stock | View |
 | IMZA120R078M2HXKSA1#C50383068Infineon · TO-247-4 | Infineon | TO-247-4 | 10 | ₹1,810.23 · 10 in stock | View |
 | IMYH200R075M1HXKSA1#C20191547Infineon · TO-247-4 | Infineon | TO-247-4 | On request | ₹2,774.32 · 0 in stock | View |
 | C3M0075120K#C5693030Wolfspeed · TO-247-4 | Wolfspeed | TO-247-4 | 89 | ₹1,311.24 · 89 in stock | View |
 | IMZC120R078M2HXKSA1#C44184296Infineon · TO-247-4 | Infineon | TO-247-4 | 23 | ₹1,318.03 · 23 in stock | View |
