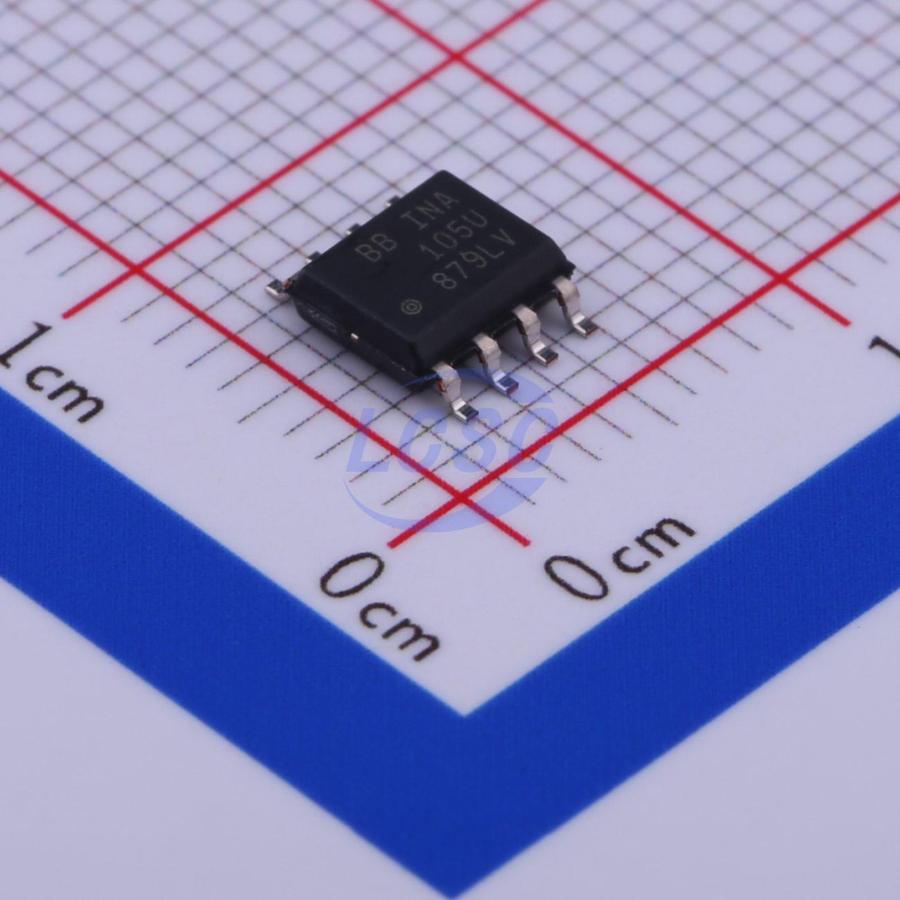

INA105KU/2K5
20mA 1 5uV 1.5V/us 90dB 2mA 1MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Precision Unity Gain DIFFERENTIAL AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- INA105KU/2K5
- Store part #
- C364891
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,491 in stock
#C364891
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹827.54 | ₹827.54 |
| 10+ | ₹664.16 | ₹6,641.60 |
| 30+ | ₹594.86 | ₹17,845.80 |
| 100+ | ₹524.90 | ₹52,490.00 |
| 500+ | ₹492.53 | ₹2,46,265.00 |
| 1,000+ | ₹477.97 | ₹4,77,970.00 |
1 × ₹827.54
₹827.54
excl. GST
₹976.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA105KU/2K5
₹827.54 for 1 + GST
Specifications
- output type
- Differential
- Settling time
- 4us
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5uV
- Slew Rate
- 1.5V/us
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Maximum Power Supply Range (Vdd-Vss)
- 30V
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 2mA
- Gain Bandwidth Product
- 1MHz
- Features
- Integrated precision resistor network;Capacitive load driving
- Dual Supply
- -15V~15V
- Noise density(eN)
- 60nV/√Hz@10kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The differential amplifier is the foundation of many commonly used circuits. The INA105 provides this precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SO-8 surface-mount and TO-99 metal packages.
Key features
- G CMR 86dB min OVER TEMPERATURE
- G GAIN ERROR: 0.01% max
- NONLINEARITY: 0.001% max
- G NO EXTERNAL ADJUSTMENTS REQUIRED
- G EASY TO USE
- G COMPLETE SOLUTION
- G HIGHLY VERSATILE
- G LOW COST PLASTIC DIP, TO-99 HERMETIC METAL, AND SO-8 SOIC PACKAGES
- G DIFFERENTIAL AMPLIFIER
- G INSTRUMENTATION AMPLIFIER BUILDING BLOCK
- G UNITY-GAIN INVERTING AMPLIFIER
- G GAIN-OF-1/2 AMPLIFIER
- G NONINVERTING GAIN-OF-2 AMPLIFIER
- G AVERAGE VALUE AMPLIFIER
- G ABSOLUTE VALUE AMPLIFIER
- G SUMMING AMPLIFIER
- G SYNCHRONOUS DEMODULATOR
- G CURRENT RECEIVER WITH COMPLIANCE TO RAILS
- G 4mA TO 20mA TRANSMITTER
- G VOLTAGE-CONTROLLED CURRENT SOURCE ALL-PASS FILTERS
