TIDatasheet (PDF)

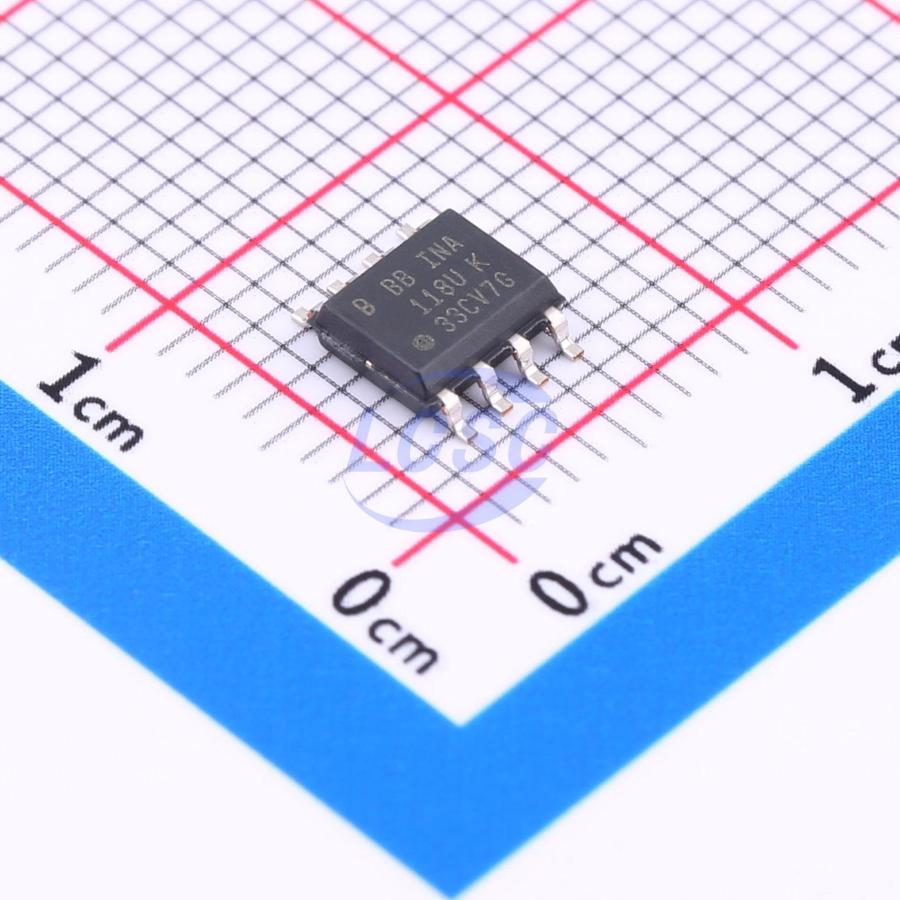

INA118UB/2K5
5mA 1 10uV 0.9V/us 110dB 1nA 350uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low-power precision instrumentation amplifier
- Manufacturer
- TI
- Manufacturer part #
- INA118UB/2K5
- Store part #
- C2057511
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,471 in stock
#C2057511
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,234.47 | ₹2,234.47 |
| 10+ | ₹2,126.68 | ₹21,266.80 |
| 30+ | ₹1,939.81 | ₹58,194.30 |
| 100+ | ₹1,776.84 | ₹1,77,684.00 |
1 × ₹2,234.47
₹2,234.47
excl. GST
₹2,636.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA118UB/2K5
₹2,234.47 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 0.9V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1nA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Quiescent Current
- 350uA
- Features
- External resistor gain;Overvoltage protection
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Dual Supply
- -18V~-2.25V;2.25V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
The INA118 is a low-power, general-purpose instrumentation amplifier offering excellent accuracy. This device features a versatile three-op-amp design in a compact package, suitable for a wide range of applications. The current-feedback input circuit provides wide bandwidth even at high gain (70kHz at G = 100). Gain is set by a single external resistor over a range of 1 to 10000. Internal input protection withstands voltages up to ±40V without damage. Laser trimmed for low offset voltage (50μV), low drift (0.5μV/°C), and high common-mode rejection (110dB at G = 1000), the INA118 operates from supply voltages as low as ±2.25V with a quiescent current of only 350μA, making it ideal for battery-powered systems. The INA118 is available in 8-pin plastic DIP and SO-8 surface-mount packages, rated for a temperature range of -40°C to +85°C.
Applications
- Pressure transmitter
- Temperature transmitter
- Weighing scale
- Electrocardiogram (ECG)
- Analog input module
- Data acquisition (DAQ)
Key features
- Low Offset Voltage: 50μV max
- Low Drift: 0.5μV/°C max
- Low Input Bias Current: 5nA max
- High CMR: 110dB min
- Input Protection up to ±40V
- Wide Supply Voltage Range: ±2.25 to ±18V
- Low Quiescent Current: 350μA
- Package: 8-Pin Plastic DIP, SO-8
