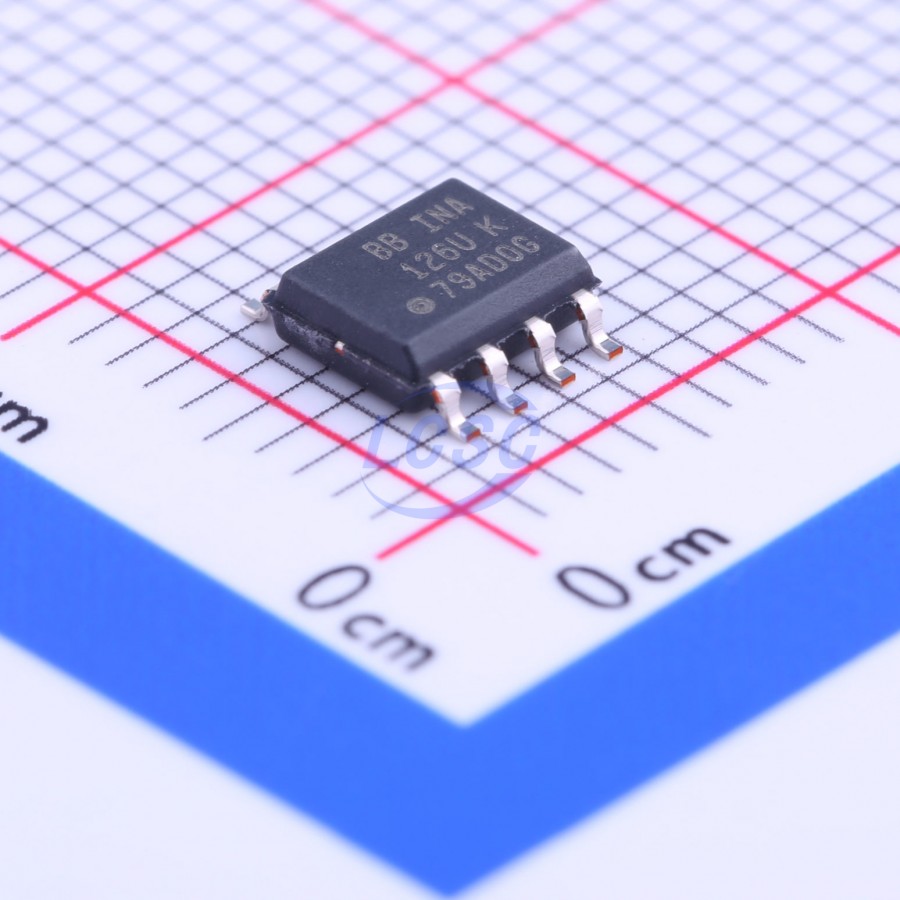

INA126U/2K5

10mA 1 250uV 0.4V/us 83dB 25nA 175uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

MicroPower Instrumentation Amplifier Single and Dual Versions

Manufacturer: TI
Manufacturer part #: INA126U/2K5
Store part #: C181300
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,062 in stock

#C181300

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹278.89	₹278.89
10+	₹235.23	₹2,352.30
30+	₹207.87	₹6,236.10
100+	₹179.85	₹17,985.00
500+	₹167.25	₹83,625.00
1,000+	₹161.82	₹1,61,820.00

Quantity (min 1)

1 × ₹278.89

₹278.89

excl. GST

₹329.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA126U/2K5

₹278.89 for 1 + GST

Specifications

Settling time: 30us
output type: Single-Ended
Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 250uV
Slew Rate: 0.4V/us
Input Offset Current(Ios): 500pA
Input Offset Current Drift (Ios TC): 10pA/℃
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 83dB
Ib - Input Bias Current: 25nA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 175uA
Features: External resistor gain;Overvoltage protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -18V~-1.35V;1.35V~18V
Single Supply: 2.7V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The INA126 and INA2126 are precision instrumentation amplifiers for accurate, low noise differential-signal acquisition. Their two-op-amp design provides excellent performance with low quiescent current (175 μA/channel). Combined with a wide operating voltage range of ±1.35 V to ±18 V, makes the INAx126 ideal for portable instrumentation and data acquisition systems. Gain can be set from 5 V/V to 10000 V/V with a single external resistor. Laser-trimmed input circuitry provides low offset voltage (250 μV maximum), low offset voltage drift (3 μV/°C maximum), and excellent common-mode rejection. Single version package options include 8-pin plastic PDIP, SOIC-8, and fine-pitch VSSOP-8 surfacemount. Dual version is available in 16-pin plastic PDIP, SOIC-8, and the space-saving, fine-pitch SSOP-16 surface-mount. All are specified for the -40°C to +85°C industrial temperature range.
