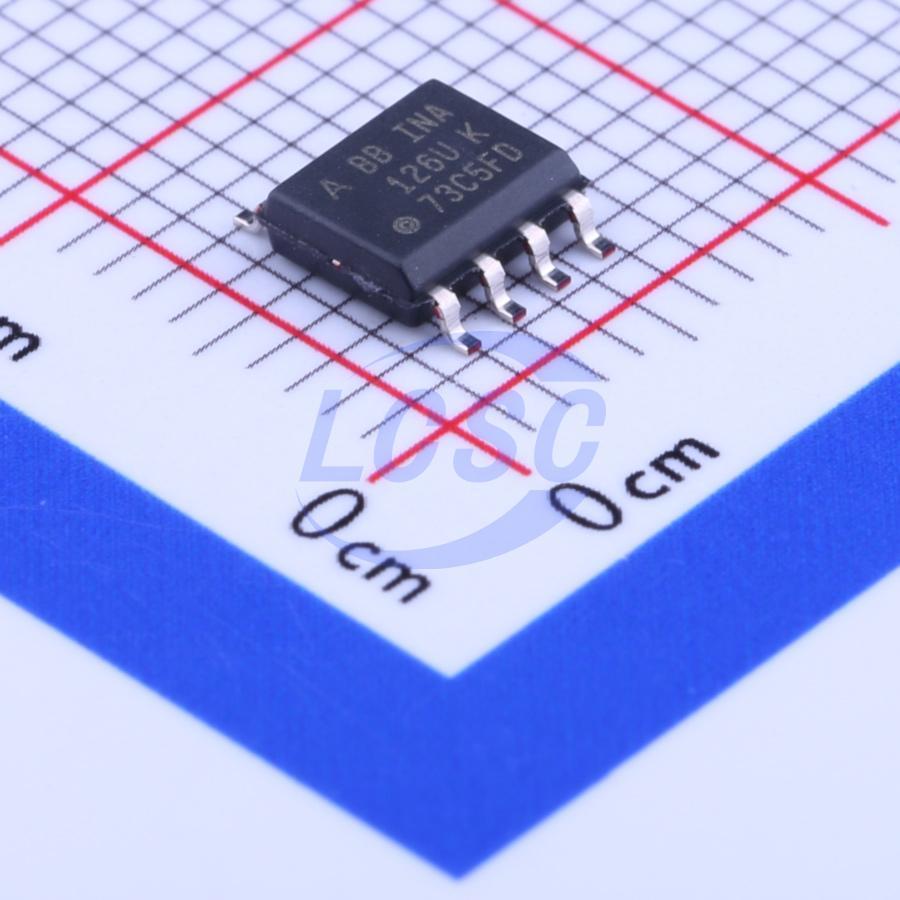

INA126UA/2K5

10mA 1 250uV 0.4V/us 83dB 25nA 175uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

MicroPower Instrumentation Amplifier Single and Dual Versions

Manufacturer: TI
Manufacturer part #: INA126UA/2K5
Store part #: C97254
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,332 in stock

#C97254

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹174.87	₹174.87
10+	₹143.33	₹1,433.30
30+	₹125.94	₹3,778.20
100+	₹106.37	₹10,637.00
500+	₹97.66	₹48,830.00
1,000+	₹93.75	₹93,750.00

Quantity (min 1)

1 × ₹174.87

₹174.87

excl. GST

₹206.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA126UA/2K5

₹174.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Settling time: 30us
Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 250uV
Slew Rate: 0.4V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 83dB
Ib - Input Bias Current: 25nA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 175uA
Features: External resistor gain;Overvoltage protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -18V~-1.35V;1.35V~18V
Single Supply: 2.7V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

INA126 and INA2126 are precision instrumentation amplifiers designed for accurate, low-noise differential signal acquisition. Their dual op-amp architecture delivers excellent performance with low quiescent current (175 μA/channel). Combined with a wide supply voltage range of ±1.35 V to ±18 V, the INAx126 is ideally suited for portable instrumentation and data acquisition systems. Gain is set via a single external resistor over a range of 5 V/V to 10000 V/V. Laser-trimmed input circuitry provides low offset voltage (250 μV maximum), low offset voltage drift (3 μV/°C maximum), and excellent common-mode rejection ratio. Single-channel package options include 8-pin plastic PDIP, SOIC-8, and fine-pitch VSSOP-8 surface-mount packages. The dual-channel version is available in 16-pin plastic PDIP, SOIC-8, and space-saving fine-pitch SSOP-16 surface-mount packages. All versions are rated for the industrial temperature range of -40°C to +85°C.
