TokmasDatasheet (PDF)

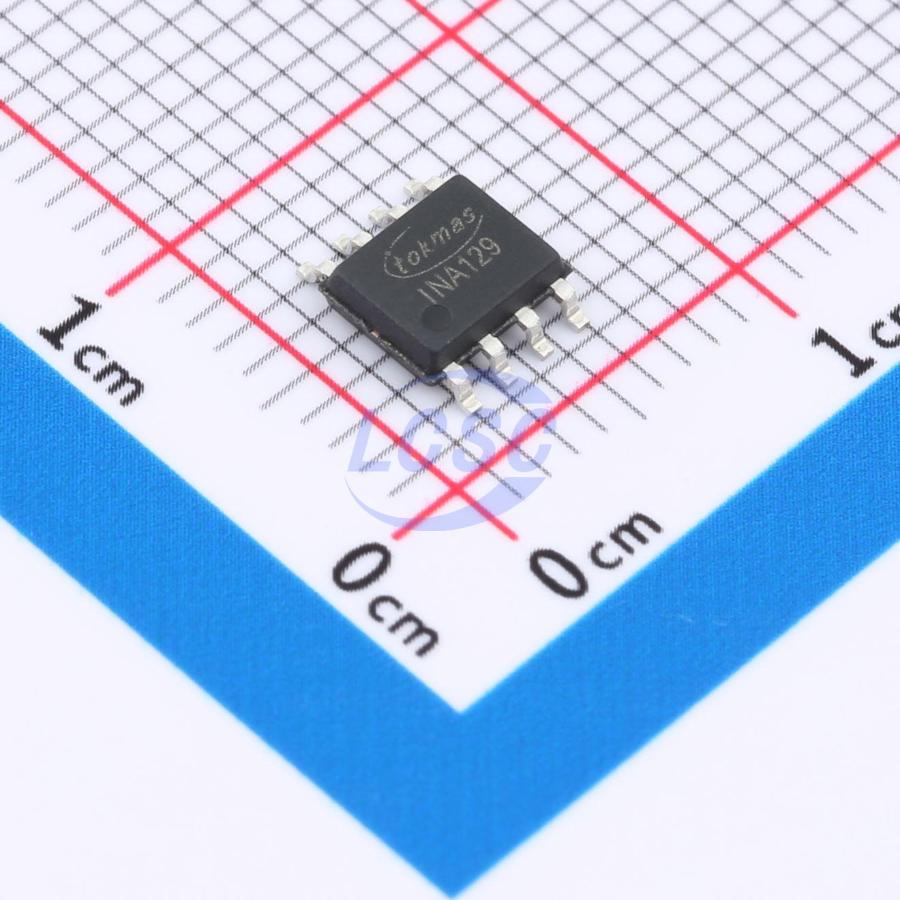

INA129UA/2K5(TOKMAS)
9mA 1 4uV 2V/us 148dB 600pA 1.3mA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- INA129UA/2K5(TOKMAS)
- Store part #
- C49209006
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,994 in stock
#C49209006
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.77 | ₹136.77 |
| 10+ | ₹123.16 | ₹1,231.60 |
| 30+ | ₹115.60 | ₹3,468.00 |
| 100+ | ₹107.18 | ₹10,718.00 |
| 500+ | ₹103.50 | ₹51,750.00 |
| 1,000+ | ₹101.78 | ₹1,01,780.00 |
1 × ₹136.77
₹136.77
excl. GST
₹161.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
INA129UA/2K5(TOKMAS)
₹136.77 for 1 + GST
Specifications
- output type
- Single-Ended
- Output Current
- 9mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4uV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 148dB
- Ib - Input Bias Current
- 600pA
- Power Supply Rejection Ratio (PSRR)
- 111dB
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 1.3mA
- Features
- External resistor gain
- Input Voltage Noise Density
- 17nV/√Hz@1kHz
- Dual Supply
- -19V~-2.25V;2.25V~19V
- Single Supply
- 4.5V~38V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
